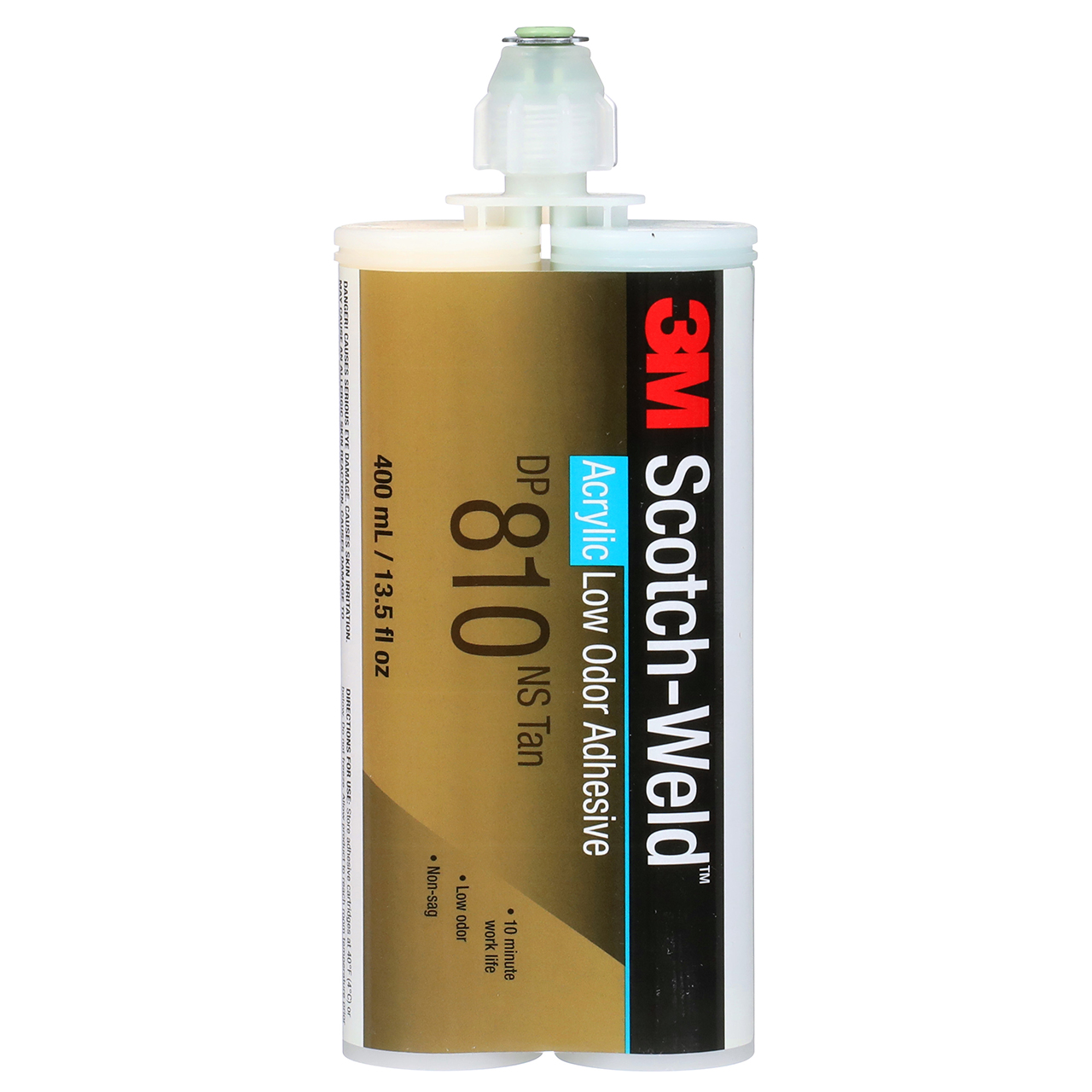

3M 7100069366 | Scotch-Weld 810NS 13.52 fl oz Tan Low Odor Acrylic Adhesive

$292.71 $242.95
(You save $49.76)
Ships:
From Manufacturer
interval quantity:
6
Ships:
From Manufacturer
SKU:
96008696
UPC:
00021200490835
Weight:
8.52 LBS
Minimum Purchase:
6 units
Shipping:
Free Shipping

3M Scotch-Weld low odor acrylic adhesive DP810NS is a non-sag, toughened two-part, room-temperature curing acrylic adhesive specially formulated to bond oily metals, plasticsand other surfaces. With lower odor and non-flammable properties, 3M Scotch-Weld Acrylic Adhesive DP810NS contributes to a safer work environment compared to typical acrylic adhesives.

When using a Duo-Pak (DP) size adhesive, rely on 3M dispensing equipment for convenient and accurate metering, mixing and dispensing.

Delivers Non-sag Formulation so Adhesive Stays Where Applied

This unique acrylic gives you the strong shear and peel strength along with good impact resistance for durability to meet your demanding end-use applications. Making work safer, faster and more efficient, that's just a few of the benefits of 3M Scotch-Weld low odor acrylic adhesive DP810NS. It bonds on a variety of substrates ranging from metals, composite and many plastics including nylon. The non-sag formula creates rigid adhesion. The acrylic adhesive cures to a tan or black color.

Recommended Applications
  • Sporting goods (metal to metal, metal to plastic bonding)
  • Appliance manufacturing (metal to metal, metal to glass)
  • Electronic casing assembly
10 Minute Work Life and 20 Minute Handling Strength

With a mix ratio is 1:1, 3M Scotch-Weld low odor acrylic adhesive DP810NS provides a 10 minute work life to allow time to adjust fit prior to setting. The adhesive reaches handling strength in approximately 20 minutes and is fully cured in 8-24 hours (at 72°F/22°C). (Note: excess adhesive exposed to air around the bond lines may remain tacky up to 48 hrs.) 3M Scotch-Weld low odor acrylic adhesive DP810NS is approved under UL 746C, polymeric materials use in electrical equipment.

Easy Adhesion with Acrylic

Acrylic adhesives, often referred to as epoxy adhesives or epoxy glue, are two-part adhesives that provide excellent bond strength and durability, although slightly lower adhesion than 2 part epoxy in some situations. However, acrylic glues have several features that make them easier to use, including a much faster cure speed, higher tolerance for oily or unprepared bonding surfaces and the ability to bond a wide variety of materials, including nearly all plastics. Newer acrylic adhesive formulations are room temperature stable with a moderate shelf life.

Features:

  • Low odor adhesive is ideal for any setting where harsh fumes or flammability are an issue
  • Delivers non-sag formulation so adhesive stays where applied
  • Provides high shear and peel strength and is toughened for impact resistance
  • 10 minute work life and 20 minute handling strength
  • Bonds oily metals with minimal surface prep
  • Bonds most plastics, composites and metals

Product Specifications
Manufacturer Part Number7100069366
Adhesion Strength320.0 oz/in
Adhesive TypeAcrylic
Color FamilyBeige
Container Size (Inch)13.52 fl oz (US)
Container Size (mm)400.0 ml
Design ChallengesImpact & Shock Absorption
Full Cure Time8-24 Hours @ 72 F (22 C)
Indoor/OutdoorBoth
Maximum Operating Temperature (Celsius)79.0 Degree Celsius
Maximum Operating Temperature (Fahrenheit)175.0 Degree Fahrenheit
Open Time10 min @ 72 °F (22 °C)
Physical FormFlowable Liquid
Product ColorTan
Product FormCartridge
Product Number810NS
Product TypeAcrylic
Set Time10 Minutes
Shear Strength4200.0 psi
Specific Gravity1.07
Storage Temperature32 F (0 C)
Storage Temperature (Celsius)0°C
SubstrateOily
Substrate 1Wood & Hardboard
Substrate 2Metal
ViscosityNon-sag
Viscosity Range (cps) at Room Temperature95,000
Volume (Inch)13.52 fl oz
Volume (mm)400.0 mL

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
