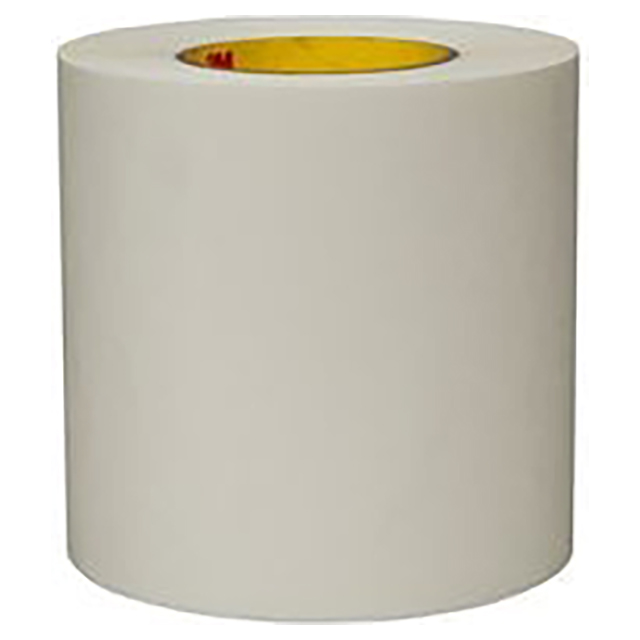

3M Double Coated Tape 9443NP features 3M Adhesive 760, a high-tack synthetic rubber adhesive that bonds a wide variety of substrates including metals, papers, paints and most plastics. This tape provides excellent initial adhesion and is somewhat repositionable.
Product Specifications
| Manufacturer Part Number | 7100143695 |
| Back Side Adhesive Thickness(mil) | 2.0mil |
| Back Side Adhesive Thickness (mm) | 0.05mm |
| Core Size (Inch) | 3.000" |
| Core Size (mm) | 76.20mm |
| Overall Length (yd) | 60.0 yd |
| Overall Length (mm) | 54.86mm |
| Overall Thickness (mil) | 6.0mil |
| Overall Width (Decimal Inch) | 1.000" |
| Overall Width (mm) | 25.40mm |
| Primary Liner Thickness (mil) | 3.7 mil |
| Primary Liner Thickness (mm) | 0.09mm |
| Total Tape Thickness without Liner (mil) | 6.0 mil |
| Total Tape Thickness without Liner (mm) | 0.15mm |
| Face Side Adhesive Thickness (mil) | 2.0mil |
| Face Side Adhesive Thickness (mm) | 0.05mm |
| Primary Liner Color | White |
| Product Color | Transparent |
| Product Form | Roll |
| Substrate | Smooth |
| Product Type | Double Sided Tape |
Product Specifications
| Manufacturer Part Number | 7100143695 |
| Adhesive Type | Synthetic Rubber |
| Core Size (Decimal Inch) | 3.000" |
| Indoor/Outdoor | Both |
| Master Size Length (mm) | 109.70mm |
| Overall Length | 60.000yd |
| Overall Thickness | 6.000mil |
| Overall Width (Decimal Inch) | 1.000" |
| Primary Liner | 62# Densified Kraft Paper (DK) |
| Primary Liner Thickness (mm) | 0.09mm |
| Product Color | Transparent |
| Product Number | 9443NP |
| Product Type | Double Sided Tape |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
3M
Adhesive Type:
Synthetic Rubber
Core Size (Inch):
3"
Core Size (Decimal Inch):
3.0000"
Core Size (mm):
76.20mm
Master Size Length (Inch):
4-5/16"
Master Size Length (Decimal Inch):
4.3200"
Master Size Length (mm):
109.70mm
Color:
Transparent
Material:
Cardboard
Primary Liner Thickness (mm):
0.09mm
Overall Width (Inch):
1"
Overall Width (Decimal Inch):
1.0000"
Overall Width (mm):
25.40mm
Overall Length (yd):
60.000yd
Overall Length (mm):
54.86mm
Overall Thickness (mil):
6.000mil
