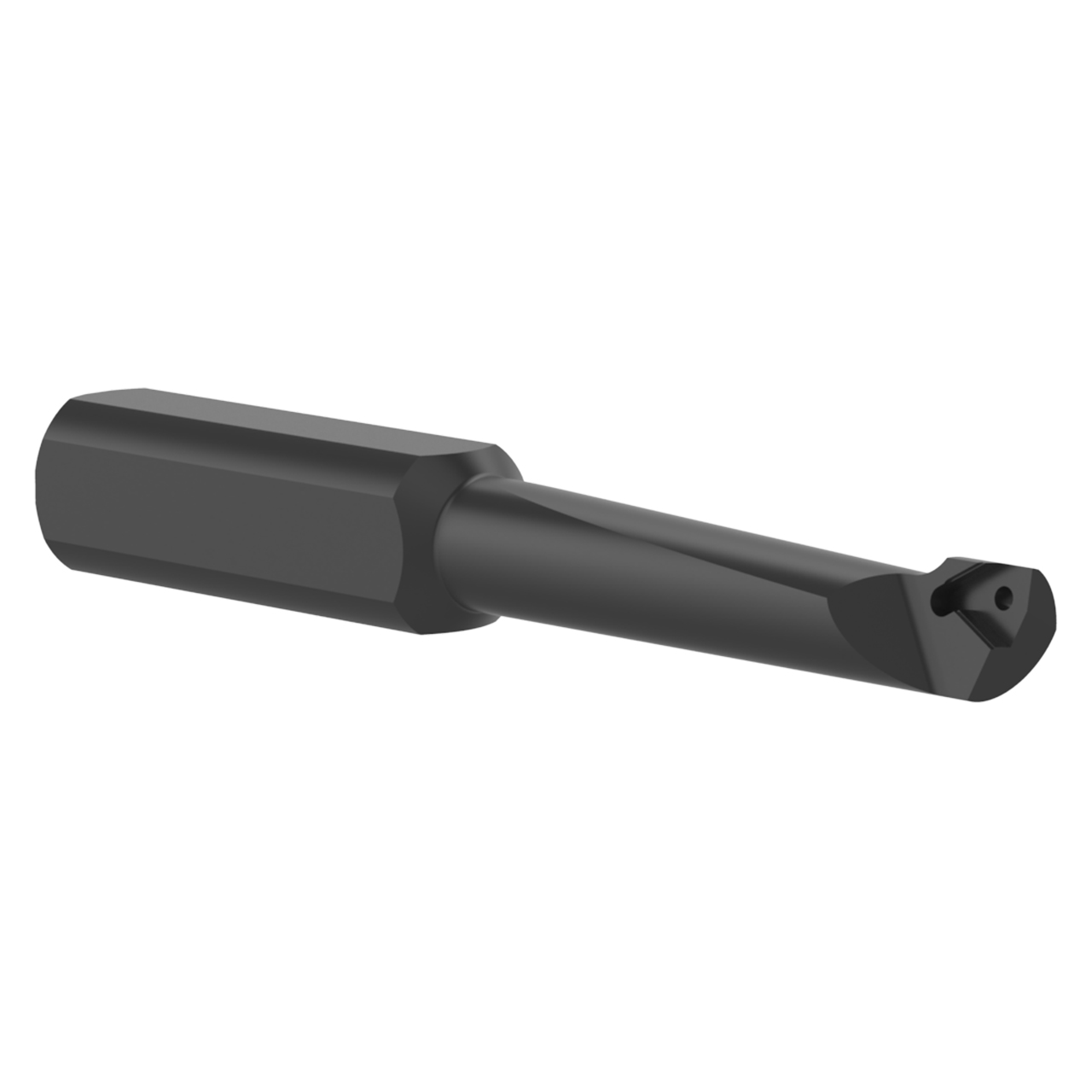

Offered in regular and adjustable styles. The adjustable boring bars are well-suited for applications where reach is a problem.
Features:
- All Criterion boring bars use ANSI/ISO standard inserts
- All boring bar and boring tool cutting edges are designed to be on center
Product Specifications
| # MFG | 0375B |
| IC Size (Inch) | 0.156" |
| Insert Thickness (Inch) | 0.078 |
| Max Bore Depth (Inch) | 2.250" |
| Minimum Diameter (Inch) | 0.375" |
| Number of Flats | 4 |
| Overall Length (Inch) | 3.062" |
| Shank Diameter (Inch) | 0.500" |
| Shape | WB |
| Style | Steel |
| Material | Steel |
