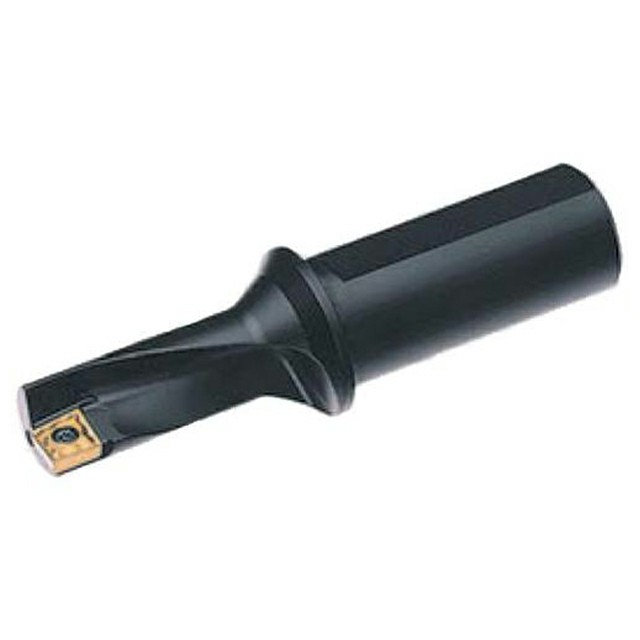

EcoCut can perform up to four operations with one tool. The EcoCut tool can be used for drilling, boring applications, facing operations and standard turning operations.
Features:
- Realize less programming, lower stock inventory, shorter set-up & cycle times and outstanding performance
Product Specifications
| # MFG | 11065235 |
| Cutting Width (Inch) | 0.394" |
| Flange Diameter (Inch) | 1.260" |
| Length of Cut (Inch) | 1.77" |
| Length Type | 2.25XD |
| Minimum Diameter (Inch) | 0.787" |
| Overall Length (Inch) | 4.42" |
| Shank Diameter (Inch) | 1.000" |
| Tool Reference Length (Inch) | 2.170" |
| Series | EC 20 |
| Shank Type | Lathe |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Drill Style:
EC 20
Drill Diameter (Inch):
25/32"
Drill Diameter (Decimal Inch):
0.7870"
Drill Diameter (mm):
19.99mm
Maximum Drill Depth (Inch):
1-49/64"
Maximum Drill Depth (Decimal Inch):
1.7700"
Maximum Drill Depth (mm):
44.96mm
Shank Type:
Lathe
Shank Diameter (Inch):
1"
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.40mm
Cutting Direction:
Left
Drill Depth by Diameter Ratio:
2.25 X D
