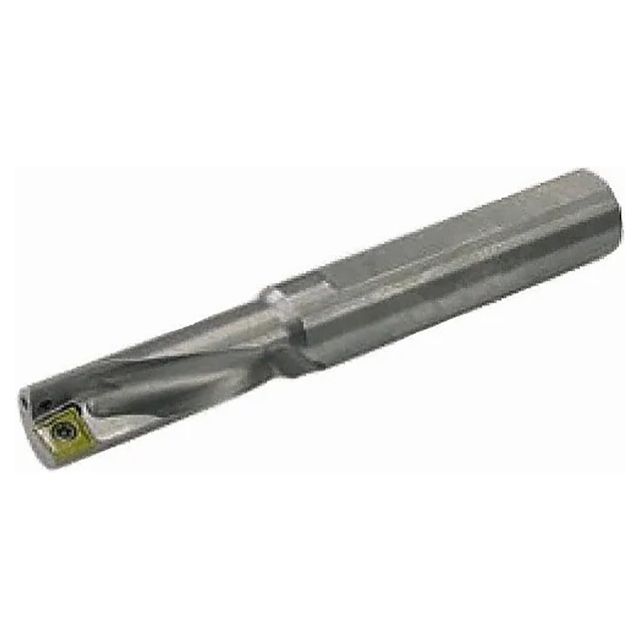

EcoCut can perform up to four operations with one tool. The EcoCut tool can be used for drilling, boring applications, facing operations and standard turning operations.
Features:
- Realize less programming, lower stock inventory, shorter set-up & cycle times and outstanding performance
Product Specifications
| # MFG | 11147329 |
| Cutting Width (Inch) | 0.236" |
| Length of Cut (Inch) | 1.42" |
| Length Type | 3.0XD |
| Minimum Diameter (Inch) | 0.472" |
| Overall Length (Inch) | 3.74" |
| Shank Diameter (Inch) | 0.625" |
| Series | EC 12 |
| Shank Type | Lathe |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Drill Style:
EC 12
Drill Diameter (Inch):
15/32"
Drill Diameter (Decimal Inch):
0.4720"
Drill Diameter (mm):
11.99mm
Maximum Drill Depth (Inch):
1-27/64"
Maximum Drill Depth (Decimal Inch):
1.4200"
Maximum Drill Depth (mm):
36.07mm
Shank Type:
Lathe
Cutting Direction:
Left
Drill Depth by Diameter Ratio:
3.0 X D
interval quantity:
1
