Original T-A is an excellent choice for general purpose use. The design provides fast penetration rates that produce good hole size and finish. Standard geometry combines highly efficient and stable cutting action to minimize power consumption.
Features:
- Corner clip allows for effective heat dispersion and increased tool life
- Ground back location ensures accurate positioning
- Self-centering point eliminates center drilling
- Web thin reduces thrust and increases point strength allowing greater reliability
Product Specifications

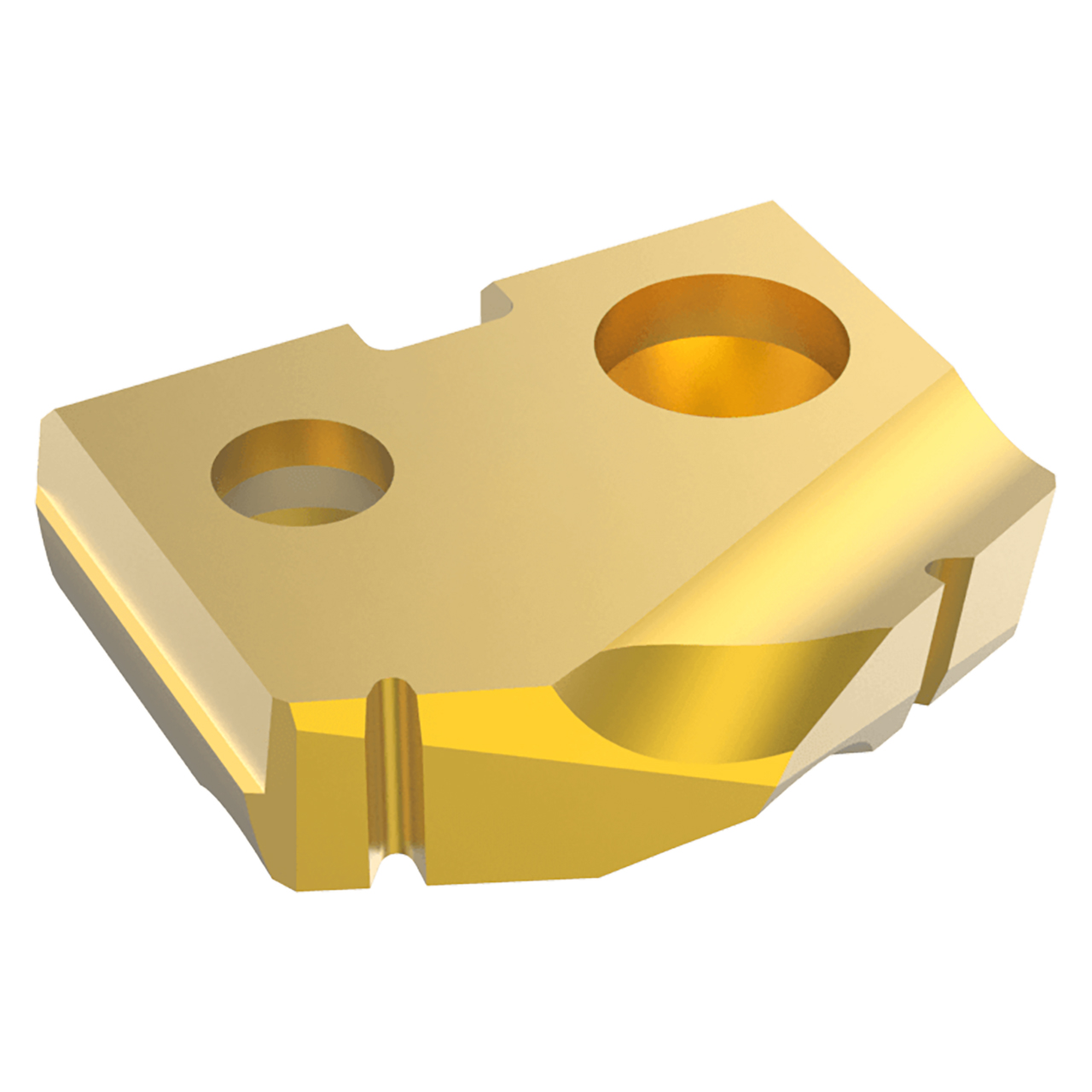

| # MFG | 180T-.515 |
| Diameter (Inch) | 33/64" |
| Diameter (Decimal Inch) | 0.5156" |
| Diameter (mm) | 13.10mm |
| Thickness (Inch) | 1/8" |
| Thickness (mm) | 3.18mm |
| Series | 0 |
| Included Angle (Degree) | 132 Degree |
| Coating | TiN |
| Material | Premium Cobalt |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
