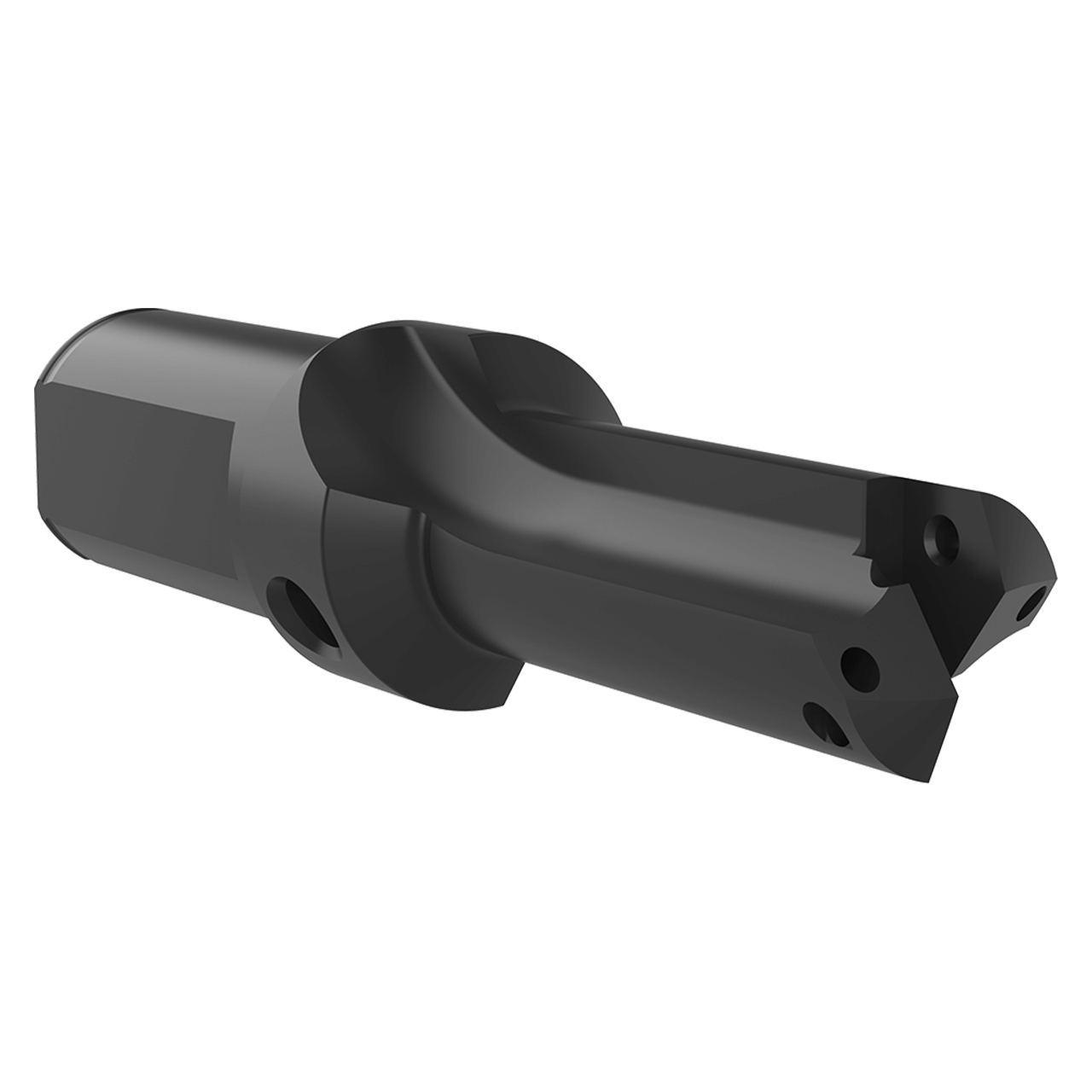

Allied Machine's T-A Holders offer a large variety of options to accommodate any of your holemaking needs.
Features:
- Helical or Straight flute designs
- Lathe, morse taper, or flange style shanks
- Through coolant optimizes chip evacuation and improved
Product Specifications
| # MFG | 21020S-125F |
| Body Length (Inch) | 3-31/64" |
| Drill Depth (Inch) | 2-1/4" |
| Flute Type | Straight |
| Length Type | Stub |
| Maximum Diameter (Inch) | 1-3/8" |
| Minimum Diameter (Inch) | 31/32" |
| Overall length (Inch) | 5-49/64" |
| Pipe Tap Rear (Inch) | 1/4" |
| Pipe Tap Side (Inch) | 1/8" |
| Series | 2 |
| Shank Diameter (Inch) | 1-1/4" |
| Shank Length (Inch) | 2-9/32" |
| Shank Type | Flanged |
| Tool Reference Length (Inch) | 3-5/8" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
2
Minimum Drill Diameter (Inch):
31/32"
Minimum Drill Diameter (Decimal Inch):
0.9700"
Minimum Drill Diameter (mm):
24.61mm
Maximum Drill Diameter (Inch):
1-3/8"
Maximum Drill Diameter (Decimal Inch):
1.3800"
Maximum Drill Diameter (mm):
34.93mm
Shank Type:
Flanged
Shank Diameter (Inch):
1-1/4"
Shank Diameter (Decimal Inch):
1.2500"
Shank Diameter (mm):
31.75mm
Overall Length (Inch):
5-49/64"
Overall Length (Decimal Inch):
5.6600"
Overall Length (mm):
143.67mm
Flute Type:
Straight
