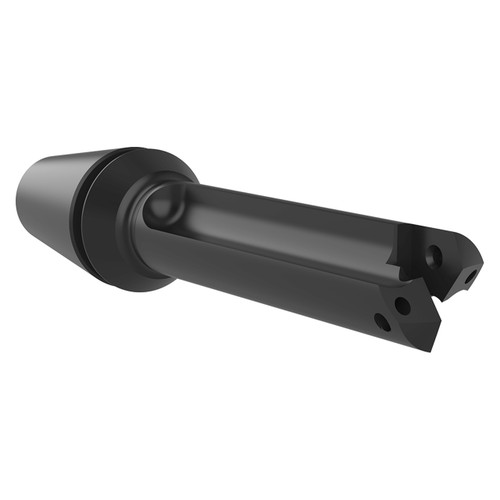

Allied Machine's T-A Holders offer a large variety of options to accommodate any of your holemaking needs.
Features:
- Helical or Straight flute designs
- Lathe, morse taper, or flange style shanks
- Through coolant optimizes chip evacuation and improved
Product Specifications
| # MFG | 210Z0S-16ER |
| Body Length (Inch) | 1-29/32" |
| Drill Depth (Inch) | 1-3/8" |
| Flute Type | Straight |
| Length Type | Stub |
| Maximum Diameter (Inch) | 1/2" |
| Minimum Diameter (Inch) | 7/16" |
| Overall length (Inch) | 3-5/64" |
| Series | Z |
| Shank Type | ER-16 |
| Tool Reference Length (Inch) | 2" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
Z
Minimum Drill Diameter (Inch):
7/16"
Minimum Drill Diameter (Decimal Inch):
0.4400"
Minimum Drill Diameter (mm):
11.11mm
Maximum Drill Diameter (Inch):
1/2"
Maximum Drill Diameter (Decimal Inch):
0.5000"
Maximum Drill Diameter (mm):
12.70mm
Shank Type:
ER-16
Overall Length (Inch):
3-5/64"
Overall Length (Decimal Inch):
3.0800"
Overall Length (mm):
78.18mm
Flute Type:
Straight
interval quantity:
1
