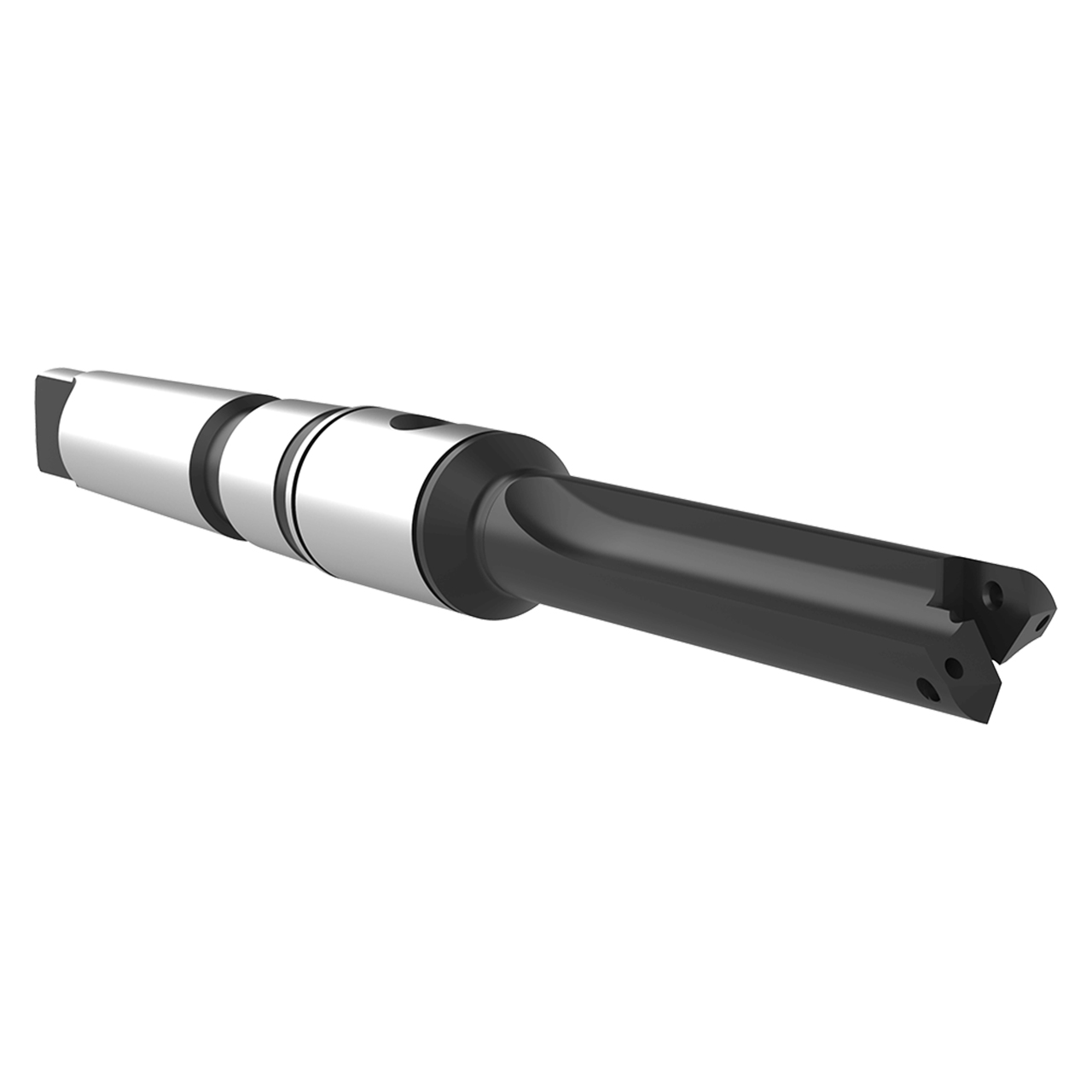

Allied Machine's T-A Holders offer a large variety of options to accommodate any of your holemaking needs.
Features:
- Helical or Straight flute designs
- Lathe, morse taper, or flange style shanks
- Through coolant optimizes chip evacuation and improved
Product Specifications
| # MFG | 22010S-003M |
| Body Length (mm) | 98.4mm |
| Drill Depth (mm) | 69.8mm |
| Flute Type | Straight |
| Length Type | Short |
| Maximum Diameter (mm) | 24mm |
| Minimum Diameter (mm) | 18" |
| Overall length (mm) | 232.5mm |
| Pipe Tap Side (Inch) | 1/8" |
| Series | 1 |
| Shank Diameter (mm) | #3 MT (ISO) |
| Shank Type | Morse Taper |
| Tool Reference Length (mm) | 142.5mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
1
Minimum Drill Diameter (Inch):
45/64"
Minimum Drill Diameter (Decimal Inch):
0.7100"
Minimum Drill Diameter (mm):
18.00mm
Maximum Drill Diameter (Inch):
15/16"
Maximum Drill Diameter (Decimal Inch):
0.9400"
Maximum Drill Diameter (mm):
24.00mm
Shank Type:
Morse Taper
Shank Diameter (mm):
#3 MT (ISO)
Overall Length (Inch):
9-5/32"
Overall Length (Decimal Inch):
9.1500"
Overall Length (mm):
232.50mm
Flute Type:
Straight
interval quantity:
1
