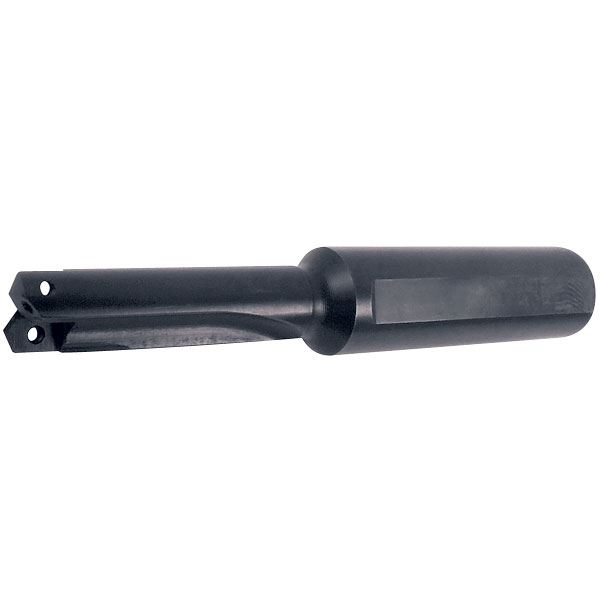

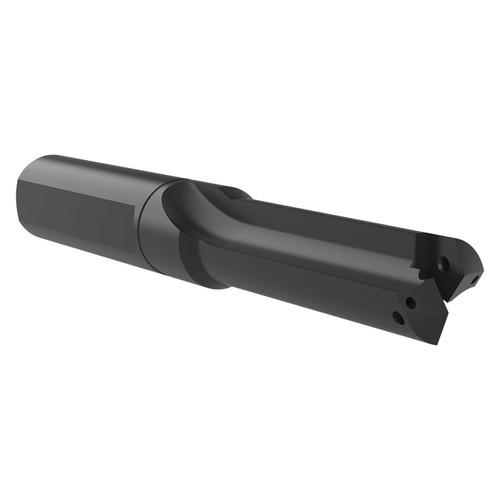

Allied Machine's T-A Holders offer a large variety of options to accommodate any of your holemaking needs.
Features:
- Helical or Straight flute designs
- Lathe, morse taper, or flange style shanks
- Through coolant optimizes chip evacuation and improved
Product Specifications
| # MFG | 22015S-100L |
| Body Length (Inch) | 3-7/8" |
| Drill Depth (Inch) | 2-5/8" |
| Flute Type | Straight |
| Length Type | Short |
| Maximum Diameter (Inch) | 15/16" |
| Minimum Diameter (Inch) | 55/64" |
| Overall length (Inch) | 6-7/8" |
| Pipe Tap Rear (Inch) | 1/8" |
| Pipe Tap Side (Inch) | 1/8" |
| Series | 1.5 |
| Shank Diameter (Inch) | 1" |
| Shank Length (Inch) | 3" |
| Shank Type | Lathe |
| Tool Reference Length (Inch) | 4-1/64" |
