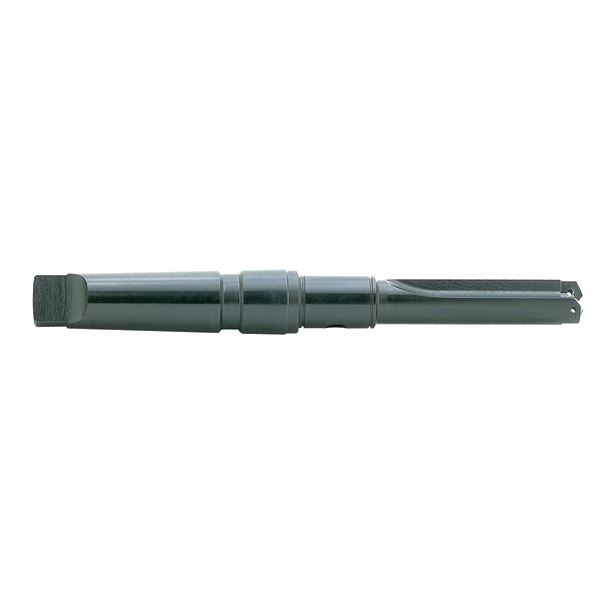

Allied Machine and Engineering 22070S-005I | 4-1/2" Diameter x #5 MT Shank x 17-5/16" OAL 7 Series Short Spade Drill Insert Holder

$744.00 $706.80
(You save $37.20)
Brand:
Allied Machine and Engineering
Series:
7
Minimum Drill Diameter (Inch):
3-17/32"
Minimum Drill Diameter (Decimal Inch):
3.5300"
Minimum Drill Diameter (mm):
89.69mm
Maximum Drill Diameter (Inch):
4-1/2"
Maximum Drill Diameter (Decimal Inch):
4.5000"
Maximum Drill Diameter (mm):
114.30mm
Shank Type:
Morse Taper
Shank Diameter (Inch):
#5 MT
Overall Length (Inch):
17-5/16"
Overall Length (Decimal Inch):
17.3100"
Overall Length (mm):
439.74mm
Flute Type:
Straight
interval quantity:
1
SKU:
10004251
UPC:
Weight:
21.25 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Allied Machine's T-A Holders offer a large variety of options to accommodate any of your holemaking needs.

Features:

  • Helical or Straight flute designs
  • Lathe, morse taper, or flange style shanks
  • Through coolant optimizes chip evacuation and improved

Product Specifications
# MFG22070S-005I
Body Length (Inch)8-7/8"
Drill Depth (Inch)6-3/4"
Flute TypeStraight
Length TypeShort
Maximum Diameter (Inch)4-1/2"
Minimum Diameter (Inch)3-17/32"
Overall length (Inch)17-5/16"
Pipe Tap Side (Inch)1/2"
Series7
Shank Diameter (Inch)#5 MT
Shank TypeMorse Taper
Tool Reference Length (Inch)11-11/16"
