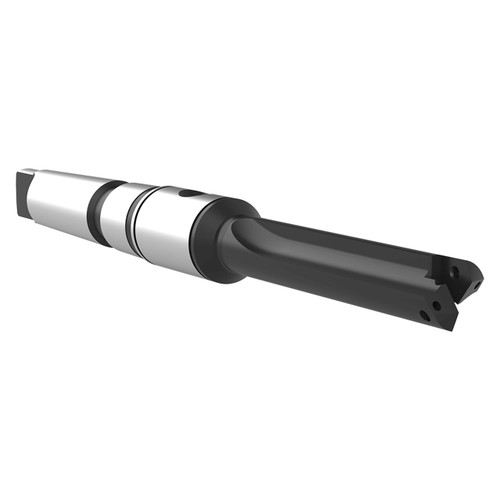

Allied Machine's T-A Holders offer a large variety of options to accommodate any of your holemaking needs.
Features:
- Helical or Straight flute designs
- Lathe, morse taper, or flange style shanks
- Through coolant optimizes chip evacuation and improved
Product Specifications
| # MFG | 24015H-003M |
| Body Length (mm) | 200mm |
| Drill Depth (mm) | 171.5mm |
| Flute Type | Helical |
| Length Type | Standard |
| Maximum Diameter (mm) | 24mm |
| Minimum Diameter (mm) | 22" |
| Overall length (mm) | 334.2mm |
| Pipe Tap Side (Inch) | 1/8" |
| Series | 1.5 |
| Shank Diameter (mm) | #3 MT (ISO) |
| Shank Type | Morse Taper |
| Tool Reference Length (mm) | 244.1mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
1.5
Minimum Drill Diameter (Inch):
55/64"
Minimum Drill Diameter (Decimal Inch):
0.8700"
Minimum Drill Diameter (mm):
22.00mm
Maximum Drill Diameter (Inch):
15/16"
Maximum Drill Diameter (Decimal Inch):
0.9400"
Maximum Drill Diameter (mm):
24.00mm
Shank Type:
Morse Taper
Shank Diameter (mm):
#3 MT (ISO)
Flute Type:
Helical
