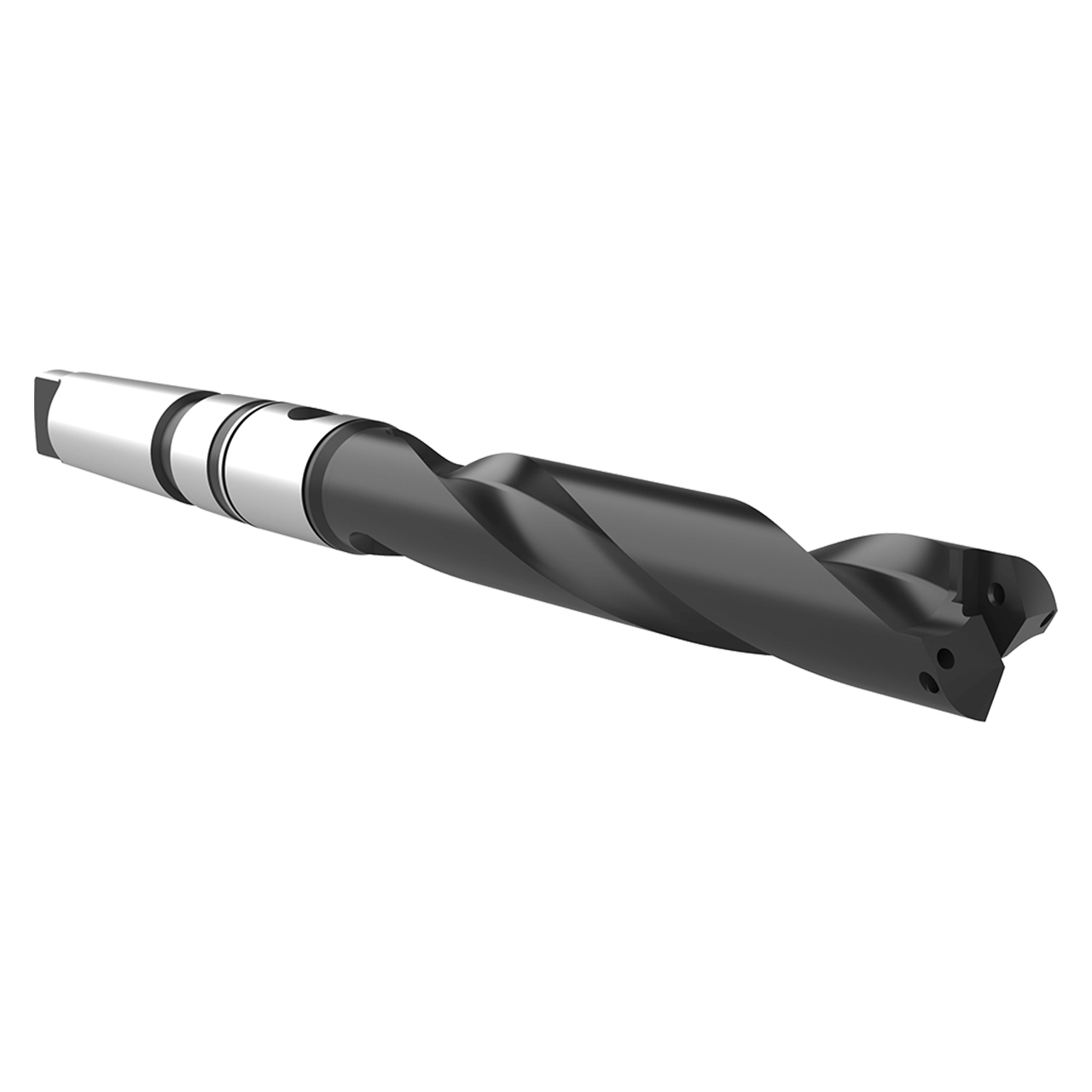

Allied Machine's T-A Holders offer a large variety of options to accommodate any of your holemaking needs.
Features:
- Helical or Straight flute designs
- Lathe, morse taper, or flange style shanks
- Through coolant optimizes chip evacuation and improved
Product Specifications
| # MFG | 24025H-004M |
| Body Length (mm) | 215.9mm |
| Drill Depth (mm) | 187.3mm |
| Flute Type | Helical |
| Length Type | Standard |
| Maximum Diameter (mm) | 35mm |
| Minimum Diameter (mm) | 30" |
| Overall length (mm) | 382.6mm |
| Pipe Tap Side (Inch) | 1/4" |
| Series | 2.5 |
| Shank Diameter (mm) | #4 MT (ISO) |
| Shank Type | Morse Taper |
| Tool Reference Length (mm) | 269.2mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
2.5
Minimum Drill Diameter (Inch):
1-3/16"
Minimum Drill Diameter (Decimal Inch):
1.1800"
Minimum Drill Diameter (mm):
30.00mm
Maximum Drill Diameter (Inch):
1-3/8"
Maximum Drill Diameter (Decimal Inch):
1.3800"
Maximum Drill Diameter (mm):
35.00mm
Shank Type:
Morse Taper
Shank Diameter (mm):
#4 MT (ISO)
Flute Type:
Helical
