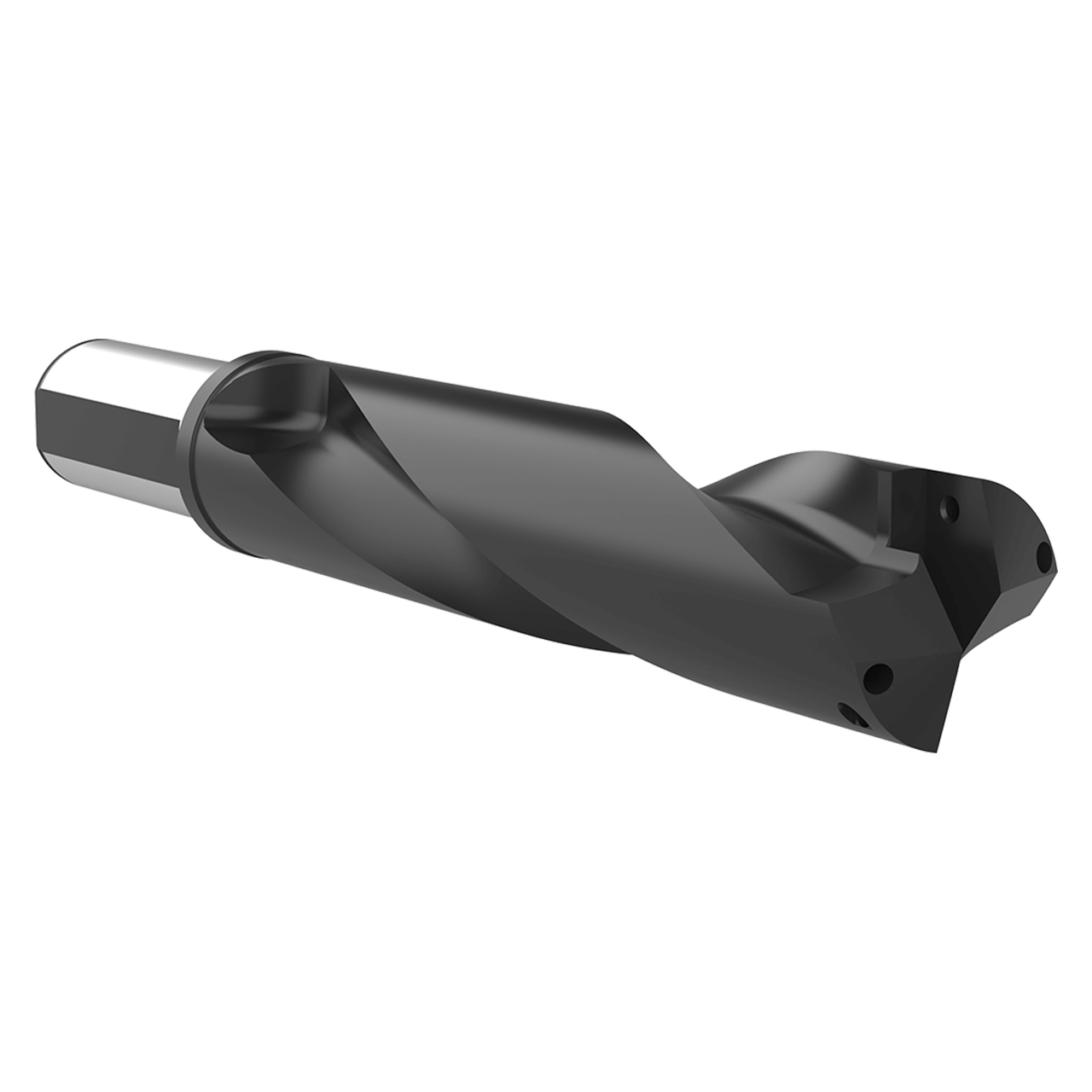

Allied Machine's T-A Holders offer a large variety of options to accommodate any of your holemaking needs.
Features:
- Helical or Straight flute designs
- Lathe, morse taper, or flange style shanks
- Through coolant optimizes chip evacuation and improved
Product Specifications
| # MFG | 24050H-50FM |
| Body Length (mm) | 317.5mm |
| Drill Depth (mm) | 273mm |
| Flute Type | Helical |
| Length Type | Standard |
| Maximum Diameter (mm) | 88mm |
| Minimum Diameter (mm) | 64" |
| Overall length (mm) | 403.9mm |
| Pipe Tap Rear (Inch) | 1/2" |
| Series | 5 |
| Shank Diameter (mm) | 50mm |
| Shank Length (mm) | 80mm |
| Shank Type | Flanged |
| Tool Reference Length (mm) | 323.9mm |
