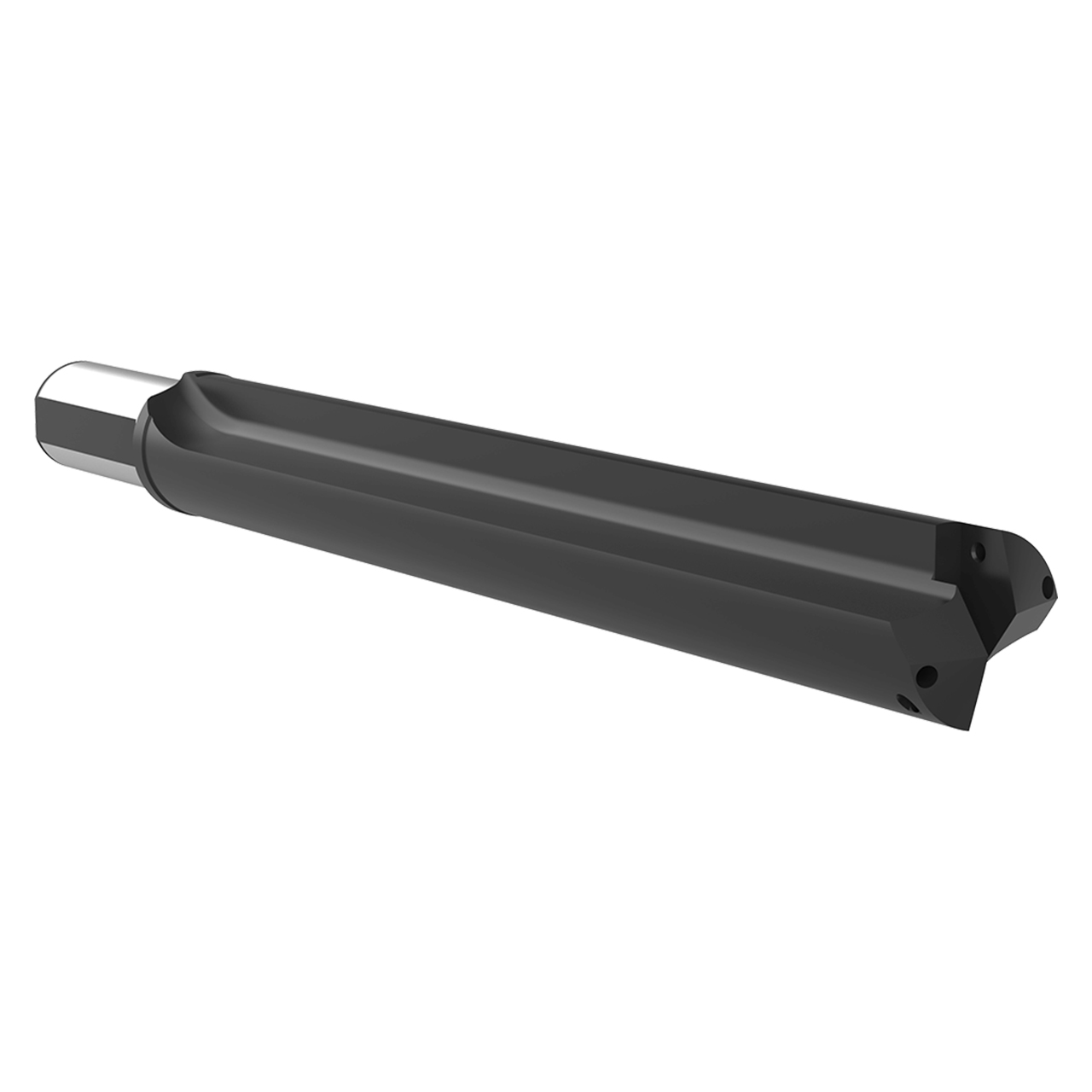

Allied Machine's T-A Holders offer a large variety of options to accommodate any of your holemaking needs.
Features:
- Helical or Straight flute designs
- Lathe, morse taper, or flange style shanks
- Through coolant optimizes chip evacuation and improved
Product Specifications
| # MFG | 25050S-50FM |
| Body Length (mm) | 508mm |
| Drill Depth (mm) | 464mm |
| Flute Type | Straight |
| Length Type | Extended |
| Maximum Diameter (mm) | 88mm |
| Minimum Diameter (mm) | 64" |
| Overall length (mm) | 594.4mm |
| Pipe Tap Rear (Inch) | 1/2" |
| Series | 5 |
| Shank Diameter (mm) | 50mm |
| Shank Length (mm) | 80mm |
| Shank Type | Flanged |
| Tool Reference Length (mm) | 514.4mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
5
Minimum Drill Diameter (Inch):
2-33/64"
Minimum Drill Diameter (Decimal Inch):
2.5200"
Minimum Drill Diameter (mm):
64.00mm
Maximum Drill Diameter (Inch):
3-15/32"
Maximum Drill Diameter (Decimal Inch):
3.4600"
Maximum Drill Diameter (mm):
88.00mm
Shank Type:
Flanged
Shank Diameter (Inch):
1-31/32"
Shank Diameter (Decimal Inch):
1.9700"
Shank Diameter (mm):
50.00mm
Overall Length (Inch):
23-13/32"
Overall Length (Decimal Inch):
23.4000"
Overall Length (mm):
594.40mm
Flute Type:
Straight
interval quantity:
1
