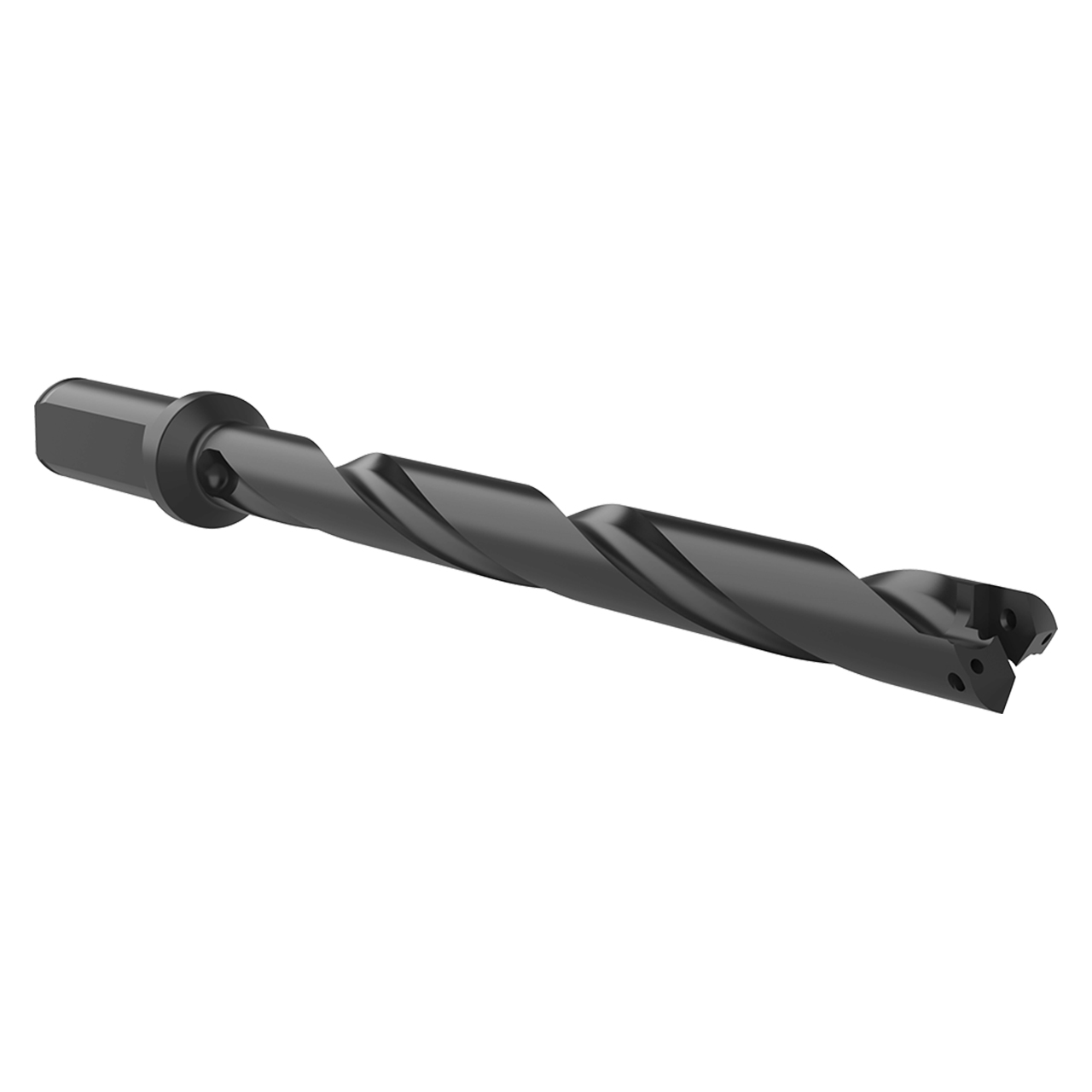

Allied Machine's T-A Holders offer a large variety of options to accommodate any of your holemaking needs.
Features:
- Helical or Straight flute designs
- Lathe, morse taper, or flange style shanks
- Through coolant optimizes chip evacuation and improved
Product Specifications
| # MFG | 26005H-075F |
| Body Length (Inch) | 8-1/8" |
| Drill Depth (Inch) | 7" |
| Flute Type | Helical |
| Length Type | Long |
| Maximum Diameter (Inch) | 11/16" |
| Minimum Diameter (Inch) | 39/64" |
| Overall length (Inch) | 10-5/32" |
| Pipe Tap Rear (Inch) | 1/8" |
| Series | 0.5 |
| Shank Diameter (Inch) | 3/4 |
| Shank Length (Inch) | 2-1/32" |
| Shank Type | Flanged |
| Tool Reference Length (Inch) | 8-15/64" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
0.5
Minimum Drill Diameter (Inch):
39/64"
Minimum Drill Diameter (Decimal Inch):
0.6100"
Minimum Drill Diameter (mm):
15.48mm
Maximum Drill Diameter (Inch):
11/16"
Maximum Drill Diameter (Decimal Inch):
0.6900"
Maximum Drill Diameter (mm):
17.46mm
Shank Type:
Flanged
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.75000"
Shank Diameter (mm):
19.05mm
Overall Length (Inch):
10-5/32"
Overall Length (Decimal Inch):
10.1600"
Overall Length (mm):
257.97mm
Flute Type:
Helical
interval quantity:
1
