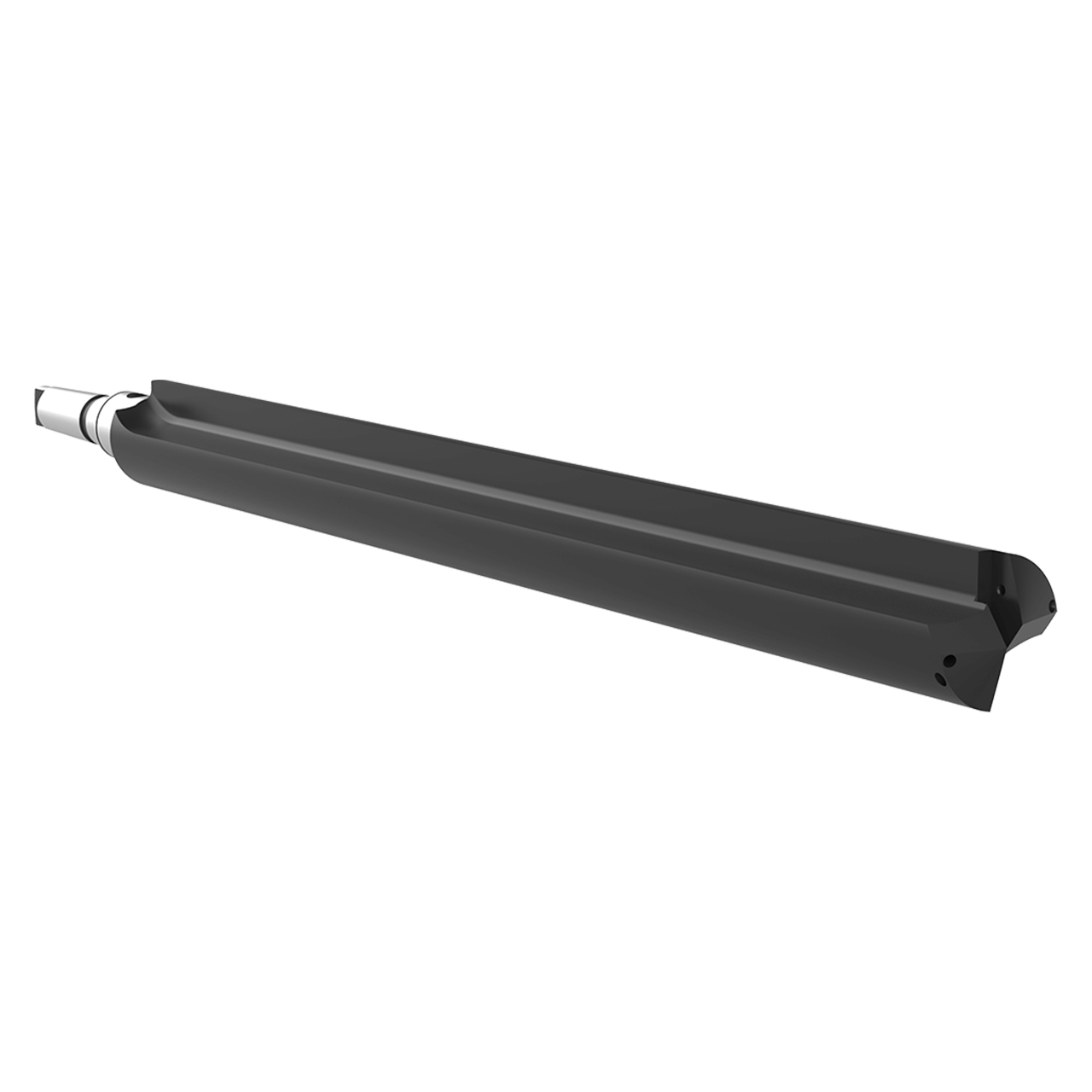

Allied Machine's T-A Holders offer a large variety of options to accommodate any of your holemaking needs.
Features:
- Helical or Straight flute designs
- Lathe, morse taper, or flange style shanks
- Through coolant optimizes chip evacuation and improved
Product Specifications
| # MFG | 29070S-005M |
| Body Length (mm) | 993.7mm |
| Drill Depth (mm) | 939mm |
| Flute Type | Straight |
| Length Type | 3XL |
| Maximum Diameter (mm) | 114mm |
| Minimum Diameter (mm) | 90" |
| Overall length (mm) | 1208mm |
| Pipe Tap Side (Inch) | 1/2" |
| Series | 7 |
| Shank Diameter (mm) | #5 MT (ISO) |
| Shank Type | Morse Taper |
| Tool Reference Length (mm) | 1065.2mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
7
Minimum Drill Diameter (Inch):
3-35/64"
Minimum Drill Diameter (Decimal Inch):
3.5400"
Minimum Drill Diameter (mm):
90.00mm
Maximum Drill Diameter (Inch):
4-31/64"
Maximum Drill Diameter (Decimal Inch):
4.4900"
Maximum Drill Diameter (mm):
114.00mm
Shank Type:
Morse Taper
Shank Diameter (mm):
#5 MT (ISO)
Overall Length (Inch):
47-9/16"
Overall Length (Decimal Inch):
47.5600"
Overall Length (mm):
1208.00mm
Flute Type:
Straight
interval quantity:
1
