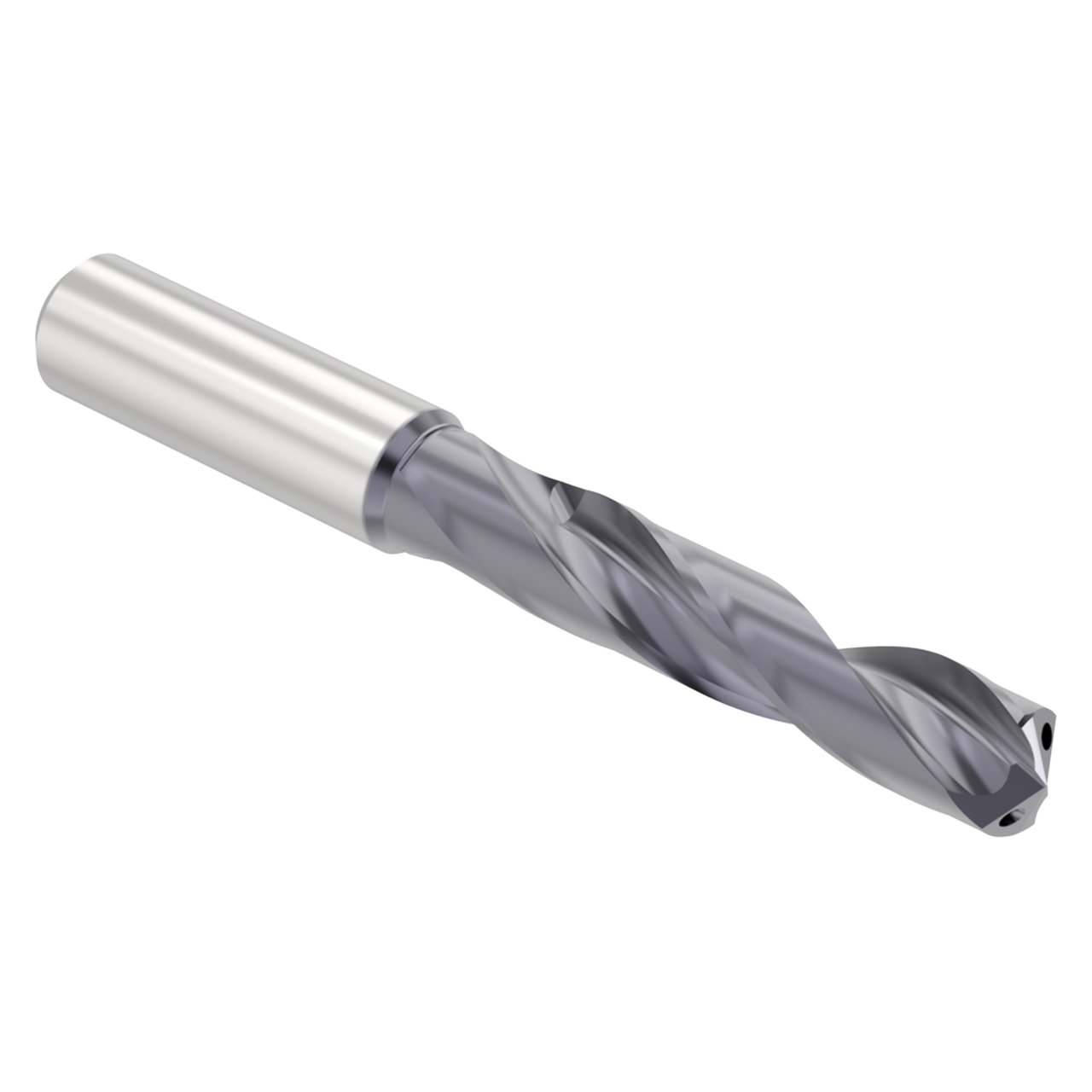

Solid carbide tools with patent pending geometry for 3-20mm diameter product range. High productivity in difficult materials. Ideal for use in Stainless Steel, Inconel, Hastelloy, and Titanium.
Features:
- Unique combination of geometry and coating allows for use in a wide variety of applications
- Reinforced shank adds durability
- Through coolant design
Product Specifications
| # MFG | 335E05625A21M |
| Diameter (Inch) | 0.5625" |
| Diameter (mm) | 14.29mm |
| Drill Depth (Inch) | 2.205" |
| Drill Depth (mm) | 56mm |
| Overall Length (Inch) | 5.070" |
| Overall Length (mm) | 128.80mm |
| Shank Diameter (mm) | 16mm |
| Shank Length (mm) | 48mm |
| Coating | Multi-Layer TiAlN |
| Coolant | Yes |
| Flute Type | Helical |
| Grade | Carbide |
| Length Type | 3.5xD |
| Shank type | Cylindrical |
