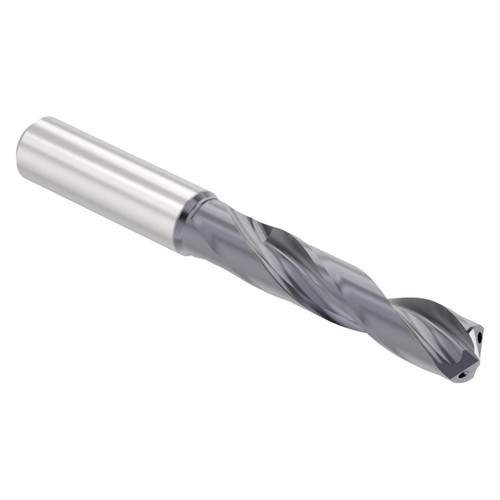

Solid carbide tools with patent pending geometry for 3-20mm diameter product range. High productivity in difficult materials. Ideal for use in Stainless Steel, Inconel, Hastelloy, and Titanium.
Features:
- Unique combination of geometry and coating allows for use in a wide variety of applications
- Reinforced shank adds durability
- Through coolant design
Product Specifications
| # MFG | 335M14000A21M |
| Diameter (Inch) | 0.5512" |
| Diameter (mm) | 14.00mm |
| Drill Depth (Inch) | 1.929" |
| Drill Depth (mm) | 49mm |
| Overall Length (Inch) | 4.550" |
| Overall Length (mm) | 115.60mm |
| Shank Diameter (mm) | 14mm |
| Shank Length (mm) | 45mm |
| Coating | Multi-Layer TiAlN |
| Coolant | Yes |
| Flute Type | Helical |
| Grade | Carbide |
| Length Type | 3.5xD |
| Shank type | Cylindrical |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Flute Type:
Helical
Drill Bit Size (Inch):
35/64"
Drill Bit Size (Decimal Inch):
0.5512"
Drill Bit Size (mm):
14.00mm
Finish/Coating:
Multi-Layer TiAlN
Shank Type:
Cylindrical
Coolant Through:
Yes
