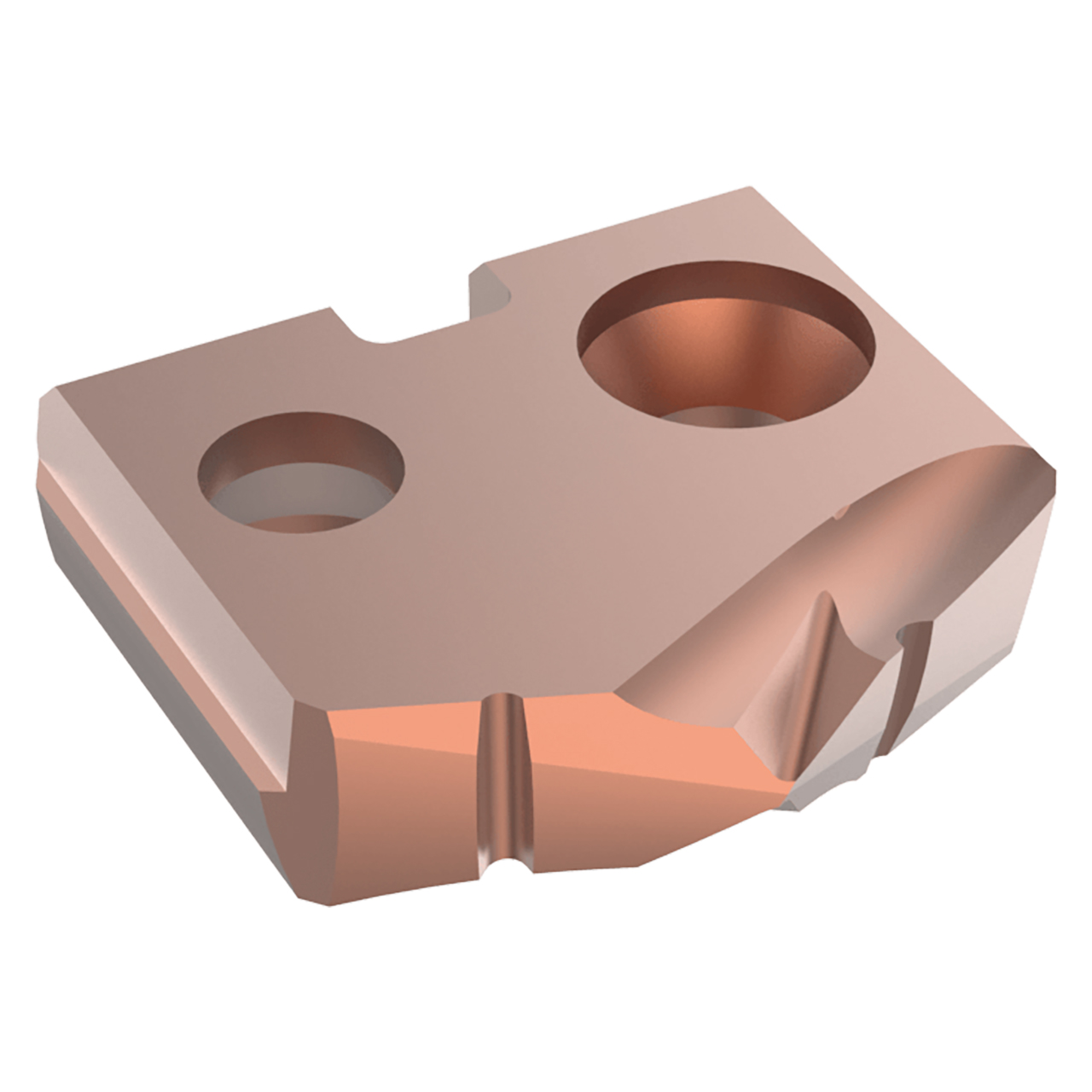

Allied Machine and Engineering 45YH-.386-HE | 0.386" Diameter x 0.094" Thickness 132 Degree Included Angle AM200 Coated Super Cobalt Y Series Spade Drill Insert

$47.00 $44.65
(You save $2.35)
Brand:
Allied Machine and Engineering
Diameter (Decimal Inch):
0.3860"
Diameter (mm):
9.80mm
Included Angle:
132 Degree
Finish/Coating:
AM200
Material:
High-Speed Steel
Thickness (Inch):
3/32"
Material Grade:
Super Cobalt
Application:
General Purpose
interval quantity:
2
SKU:
23033280
UPC:
Weight:
1.23 LBS
Minimum Purchase:
2 units
Shipping:
Calculated at Checkout

GEN2 T-A drill inserts provide lower drilling forces, increased drill stability, smoother breakout on through-hole and allows for improved chip formation.

Features:

  • Notch Point geometry improves stability, hole straightness, and reduces thrust
  • Web Thin reduces thrust and increases point strength, allowing greater reliability
  • Helical Margin increases drill stability
  • Helical Flute improves tool life
    •
    Product Specifications
    # MFG45YH-.386-HE
    Diameter (Inch)0.386"
    Diameter Fractional EquivalentW
    Diameter (mm)9.8mm
    Thickness (Inch)0.09375"
    Included Angle (Degree)132 Degree
    SeriesY
    GeometryHigh Efficiency
    MaterialSuper Cobalt
    CoatingAM200

    Warning:

    This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

    For more information, visit www.P65Warnings.ca.gov

    Brand:
    Allied Machine and Engineering
    Diameter (Decimal Inch):
    0.3860"
    Diameter (mm):
    9.80mm
    Included Angle:
    132 Degree
    Finish/Coating:
    AM200
    Material:
    High-Speed Steel
    Thickness (Inch):
    3/32"
    Material Grade:
    Super Cobalt
    Application:
    General Purpose
    interval quantity:
    2
