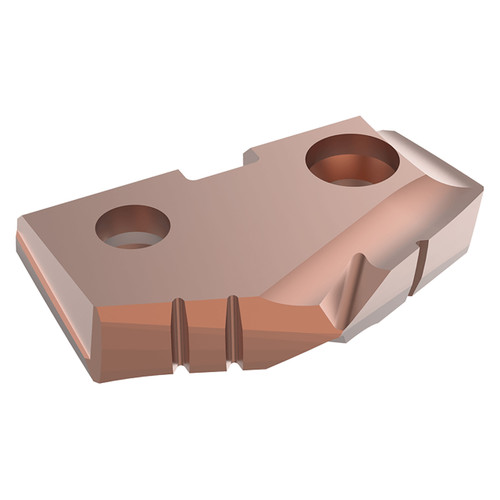

Allied Machine and Engineering 4C22H-25.5 | 25.50mm Diameter x 4.76mm Thickness 132 Degree Included Angle AM300 Coated C2(K20) 2 Series Spade Drill Insert

$93.34
Ships:
From Manufacturer In 2-3 Weeks (Contact Us For Current Availability)
interval quantity:
2
Ships:
From Manufacturer In 2-3 Weeks (Contact Us For Current Availability)
SKU:
23100743
Weight:
0.06 LBS
Minimum Purchase:
2 units
Shipping:
Free Shipping

GEN2 T-A drill inserts provide lower drilling forces, increased drill stability, smoother breakout on through-hole and allows for improved chip formation.

Features:

  • Notch Point geometry improves stability, hole straightness, and reduces thrust
  • Web Thin reduces thrust and increases point strength, allowing greater reliability
  • Helical Margin increases drill stability
  • Helical Flute improves tool life
  • Note: Non-stocked items are NON-RETURNABLE

Product Specifications
# MFG4C22H-25.5
Diameter (Inch)1.0039"
Diameter (mm)25.5mm
Thickness (Inch)3/16"
Included Angle (Degree)132 Degree
Series2
GeometryStandard
MaterialC2(K20)
CoatingAM300
