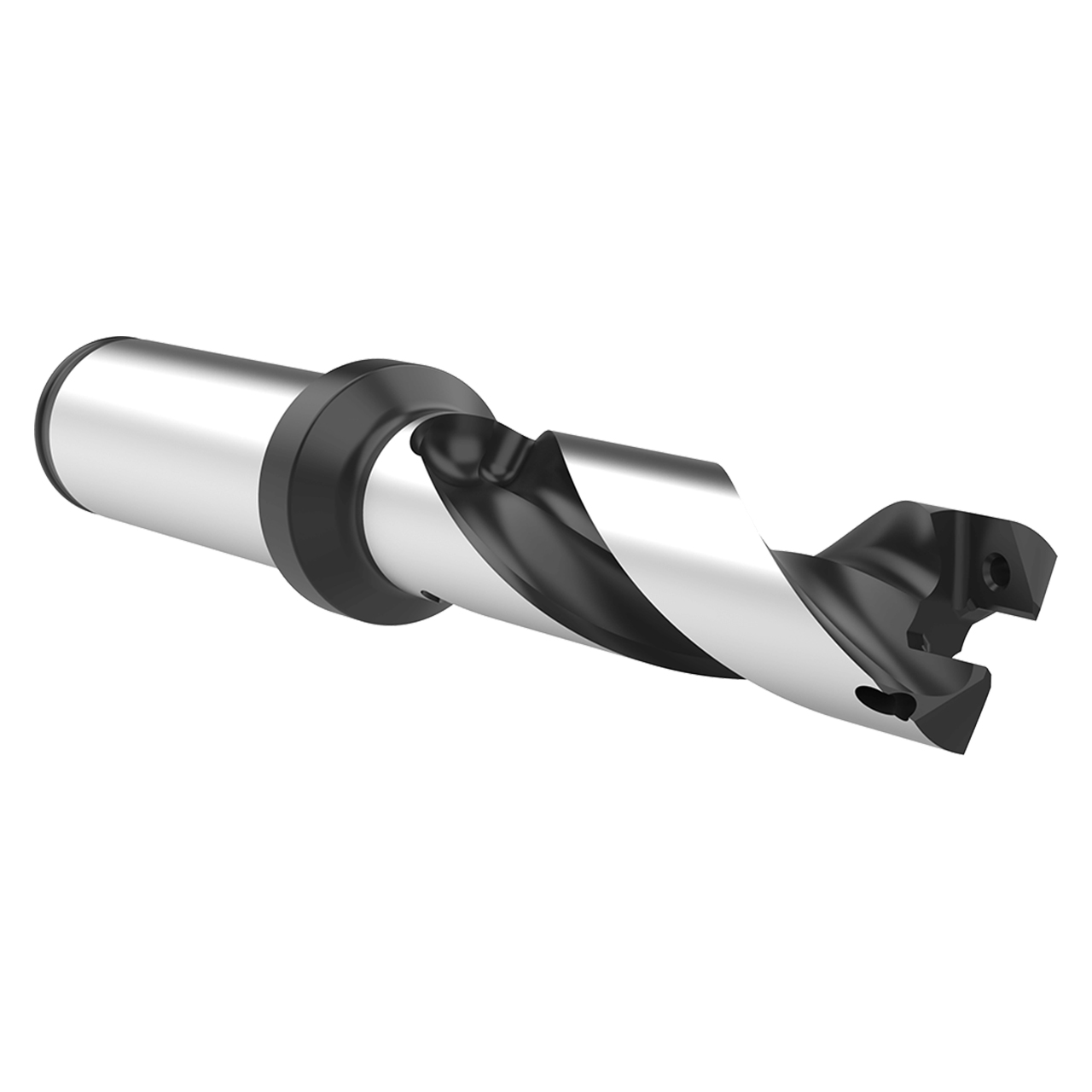

GEN3SYS drill holders penetrate up to 35% faster than competitive drilling products. Compatible with GEN3SYS and GEN3SYS XT inserts.
Features:
- The GEN3SYS high penetration holders have a highly precise locating pad for absolute repeatability and reductions in TIR
- Straight and helical flute options
- Precision-ground locating slots
- Cylindrical flanged and flanged flat shank options
Product Specifications
| # MFG | 60317H-20CM |
| Body Length (mm) | 84.1mm |
| Drill Depth (mm) | 54mm |
| Maximum Diameter (Decimal Inch) | 0.7086" |
| Maximum Diameter (mm) | 17.99mm |
| Minimum Diameter (Decimal Inch) | 0.6693" |
| Minimum Diameter (mm) | 17mm |
| Overall Length (mm) | 134.1mm |
| Pipe Tap Rear (mm) | 1/8 (BSP) |
| Series | 17 |
| Shank Diameter (mm) | 20.00mm |
| Shank Length (mm) | 50mm |
| Tool Reference Length (mm) | 87mm |
| Length Type | 3xD |
| Coolant Inlet Style Rear | TSC |
| Flat | No |
| Flute Type | Helical |
| Shank Type | Flanged |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
17
Minimum Drill Diameter (Inch):
43/64"
Minimum Drill Diameter (Decimal Inch):
0.6693"
Minimum Drill Diameter (mm):
17.00mm
Maximum Drill Diameter (Inch):
45/64"
Maximum Drill Diameter (Decimal Inch):
0.7086"
Maximum Drill Diameter (mm):
17.99mm
Shank Type:
Flanged
Drill Depth by Diameter Ratio:
3xD
Maximum Drill Depth (Inch):
2-1/8"
Maximum Drill Depth (Decimal Inch):
2.1300"
Maximum Drill Depth (mm):
54.00mm
Flute Type:
Helical
interval quantity:
2
