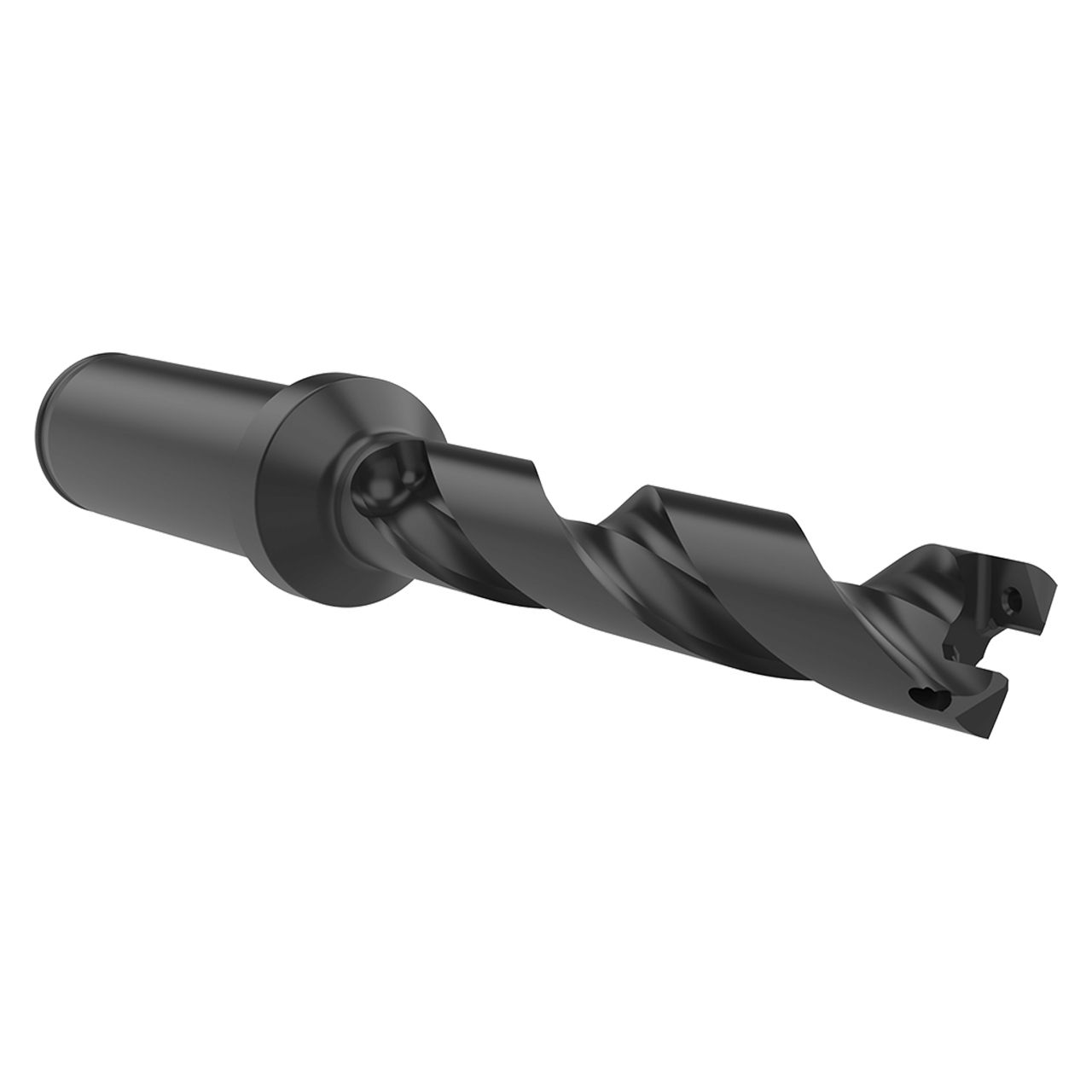

GEN3SYS drill holders penetrate up to 35% faster than competitive drilling products. Compatible with GEN3SYS and GEN3SYS XT inserts.
Features:
- The GEN3SYS high penetration holders have a highly precise locating pad for absolute repeatability and reductions in TIR
- Straight and helical flute options
- Precision-ground locating slots
- Cylindrical flanged and flanged flat shank options
Product Specifications
| # MFG | 60514H-075C |
| Body Length (Inch) | 4-1/32" |
| Drill Depth (Inch) | 2-61/64" |
| Maximum Diameter (Decimal Inch) | 0.5905" |
| Maximum Diameter (mm) | 14.99mm |
| Minimum Diameter (Decimal Inch) | 0.5512" |
| Minimum Diameter (mm) | 14mm |
| Overall Length (Inch) | 6-1/16" |
| Pipe Tap Rear (Inch) | 1/8 (NPT) |
| Series | 14 |
| Shank Diameter (Inch) | 3/4" |
| Shank Length (Inch) | 2-1/32" |
| Tool Reference Length (Inch) | 4-1/8" |
| Length Type | 5xD |
| Coolant Inlet Style Rear | TSC |
| Flat | No |
| Flute Type | Helical |
| Shank Type | Flanged |
