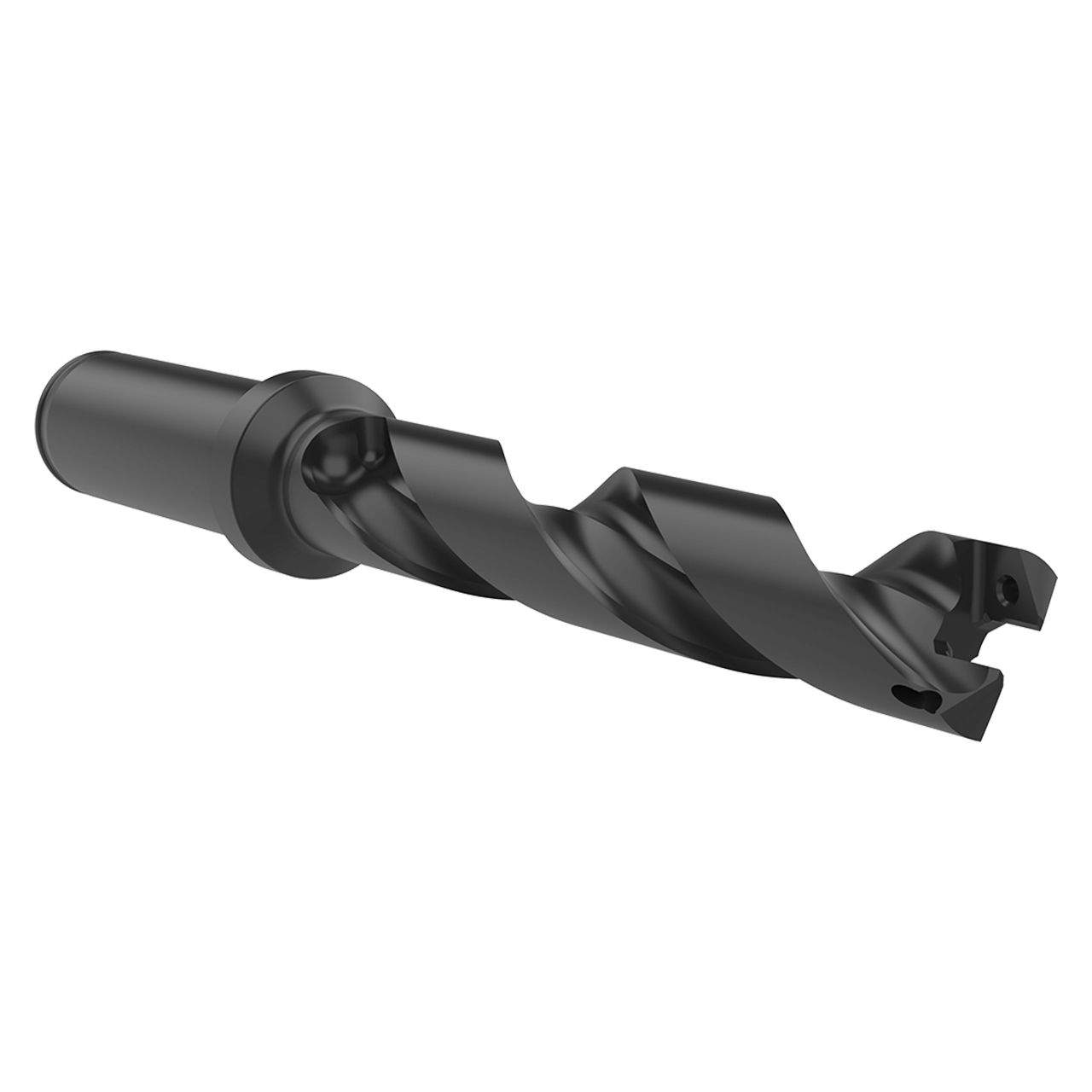

GEN3SYS drill holders penetrate up to 35% faster than competitive drilling products. Compatible with GEN3SYS and GEN3SYS XT inserts.
Features:
- The GEN3SYS high penetration holders have a highly precise locating pad for absolute repeatability and reductions in TIR
- Straight and helical flute options
- Precision-ground locating slots
- Cylindrical flanged and flanged flat shank options
Product Specifications
| # MFG | 60517H-075C |
| Body Length (Inch) | 4-47/64" |
| Drill Depth (Inch) | 3-35/64" |
| Maximum Diameter (Decimal Inch) | 0.7086" |
| Maximum Diameter (mm) | 17.99mm |
| Minimum Diameter (Decimal Inch) | 0.6693" |
| Minimum Diameter (mm) | 17mm |
| Overall Length (Inch) | 6-49/64" |
| Pipe Tap Rear (Inch) | 1/8 (NPT) |
| Series | 17 |
| Shank Diameter (Inch) | 3/4" |
| Shank Length (Inch) | 2-1/32" |
| Tool Reference Length (Inch) | 4-27/32" |
| Length Type | 5xD |
| Coolant Inlet Style Rear | TSC |
| Flat | No |
| Flute Type | Helical |
| Shank Type | Flanged |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
17
Minimum Drill Diameter (Inch):
43/64"
Minimum Drill Diameter (Decimal Inch):
0.6693"
Minimum Drill Diameter (mm):
17.00mm
Maximum Drill Diameter (Inch):
45/64"
Maximum Drill Diameter (Decimal Inch):
0.7086"
Maximum Drill Diameter (mm):
17.99mm
Shank Type:
Flanged
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Overall Length (Inch):
6-49/64"
Overall Length (Decimal Inch):
6.7700"
Overall Length (mm):
171.85mm
Drill Depth by Diameter Ratio:
5xD
Maximum Drill Depth (Inch):
3-35/64"
Maximum Drill Depth (Decimal Inch):
3.5500"
Maximum Drill Depth (mm):
90.09mm
Flute Type:
Helical
