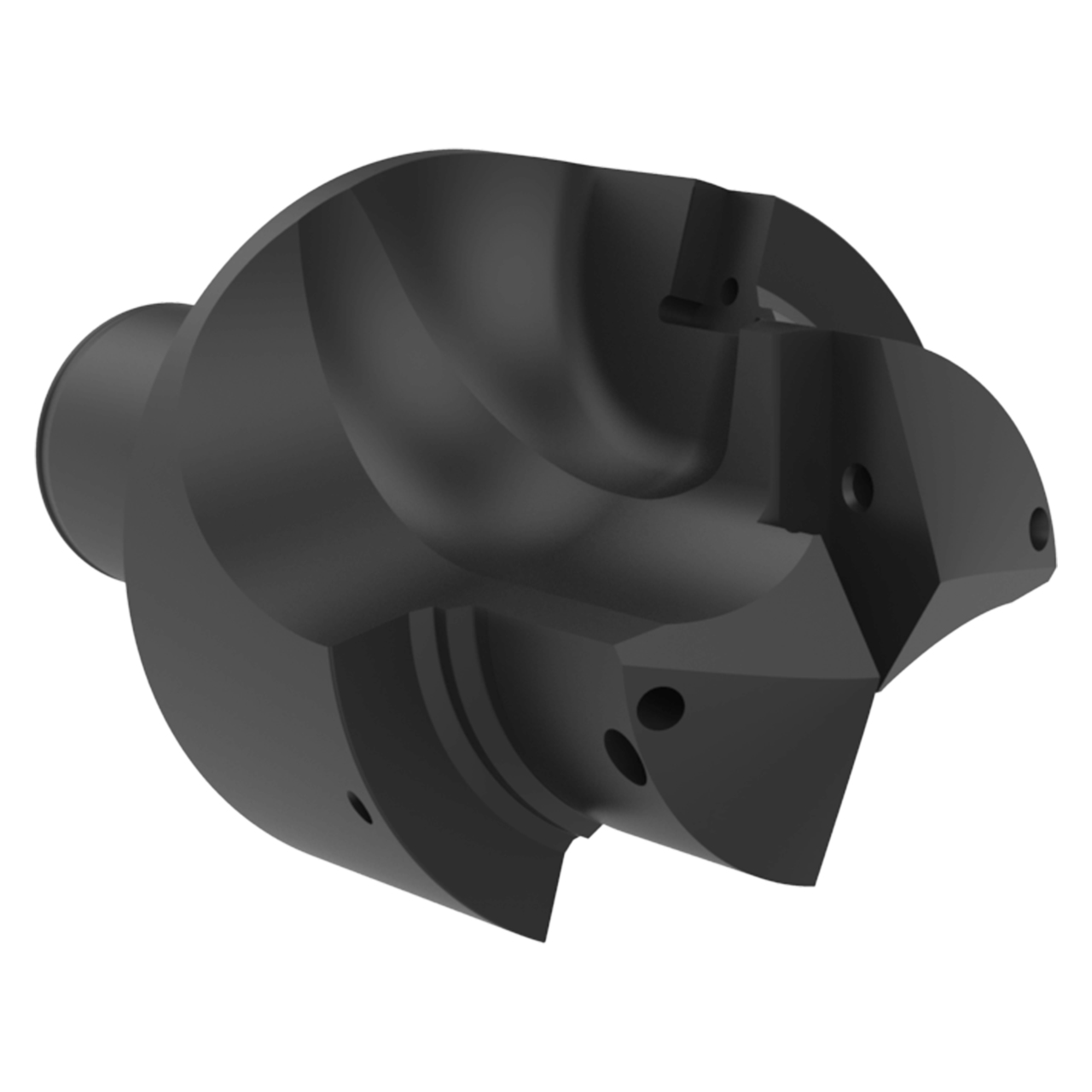

Allied Machine and Engineering AS5202-324-150F | -32 Size x 2.421" Diameter x 1.5" Shank x 6.38" OAL 4 Series Indexable Porting Tool

$826.00
interval quantity:
1
SKU:
23029464
UPC:
Weight:
5.41 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Single Operation Port Hole Drilling Solutions. Allied's revolutionary port hole drilling system combines two manufacturing functions. The patent-pending design provides excellent repeatability and surface finish while eliminating lost production time due.

Features:

  • Produced to strict manufacturing tolerances
  • Drill and finish forms port in one operation

Product Specifications
# MFGAS5202-324-150F
Pilot Diameter (Inch)2.421"
Pilot Diameter (mm)61.49mm
Spotface Diameter (Inch)3.49"
Spotface Diameter (mm)88.65mm
Shank Diameter (Inch)1.5"
Shank Diameter (mm)38.1mm
Seal Angle Diameter (Inch)2.676"
Seal Angle Diameter (mm)67.97mm
Overall Length (Inch)6.38"
Overall Length (mm)161.93mm
Pilot Length (Inch)2.688"
Pilot Length (mm)68.28mm
Shank Length (Inch)1.802"
Shank Length (mm)45.78mm
Seal Angle60 Degree
Spotface to Shoulder Length (mm)45.78mm
Seal Angle60 Degree
Series4
Tube Size-32
Port StandardSAE AS5202
Port Thread Size2 1/2-12 UNJ-3B
Shank TypeCylindrical
Pipe Tap Rear (Inch)1/4"
