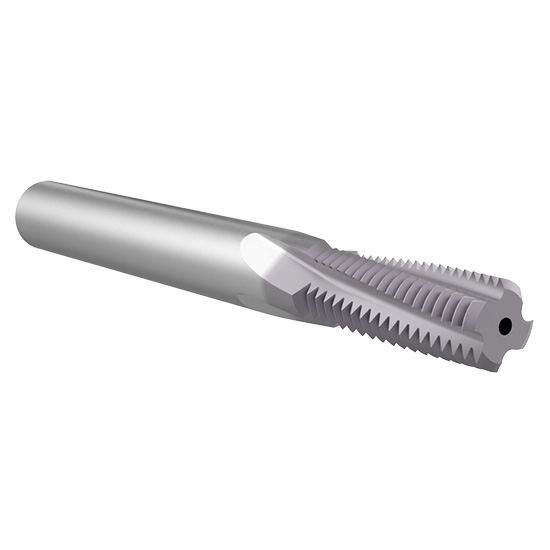

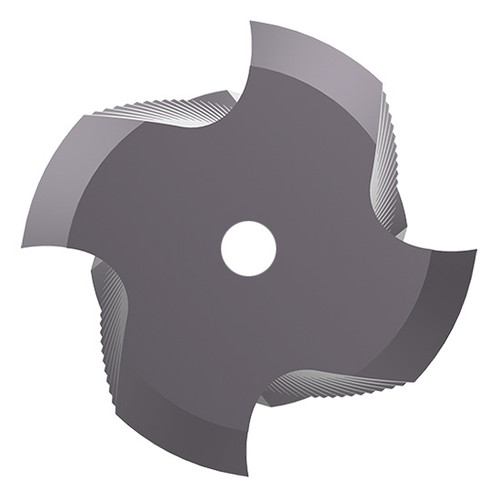

The threadmill range is manufactured from solid carbide with ground helical flutes and a TiAlN coating as standard. These products have been designed for the low volume/low cost production environment, providing excellent performance at a competitive price.
Features:
- Full product offering of UN,NPT,NPTF, and METRIC tools
- TiAlN coated for increased tool life over uncoated tools
- Extensive range of thread forms
- Coolant through
- Thread Per Inch : 32
- Thread Form : UN
Product Specifications
| #MFG | HDTM19032CHM |
| Thread Size (Inch) | #10 |
| Cutter Diameter (Inch) | 9/64" |
| Cutter Diameter (Decimal Inch) | 0.1457" |
| Cutter Diameter (mm) | 3.81mm |
| Pitch (Inch) | 1-17/64" |
| Pitch (Decimal Inch) | 1.2600" |
| Pitch (mm) | 32.00mm |
| Shank Diameter (Inch) | 5/32" |
| Shank Diameter (Decimal Inch) | 0.1575" |
| Shank Diameter (mm) | 4.00mm |
| Length of Cut (Inch) | 5/16" |
| Length of Cut (Decimal Inch) | 0.3130" |
| Length of Cut (mm) | 7.950mm |
| Number of Flutes | 3 |
| Thread Type | Internal/External |
| Finish/Coating | TiAIN |
| Material | Carbide |
| Through Coolant (yes/no) | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Thread Size (Inch):
#10
Thread Type:
Internal/External
Pitch (Inch):
1-17/64"
Pitch (Decimal Inch):
1.2600"
Pitch (mm):
32.00mm
Cutter Diameter (Inch):
9/64"
Cutter Diameter (Decimal Inch):
0.1457"
Cutter Diameter (mm):
3.81mm
Shank Diameter (Inch):
5/32"
Shank Diameter (Decimal Inch):
0.1575"
Shank Diameter (mm):
4.00mm
Number of Flutes:
3
Length of Cut (Inch):
5/16"
Length of Cut (Decimal Inch):
0.3130"
Length of Cut (mm):
7.950mm
Finish/Coating:
TiAIN
Material:
Carbide
Through Coolant (yes/no):
Yes
