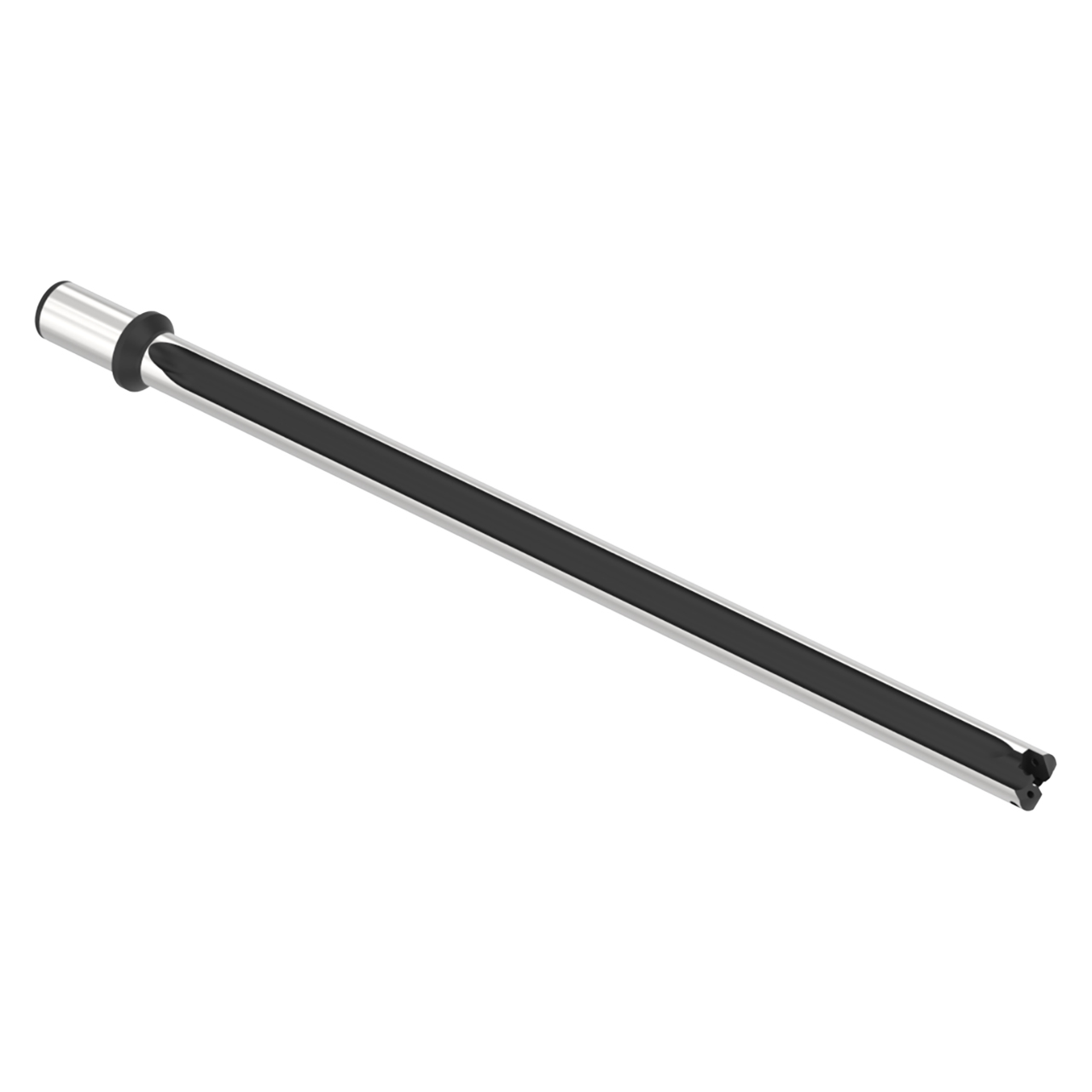

The T-A Pro is the culmination of years of application wins and losses, taking what was typically known as a general purpose tool and making it the go-to for all applications, providing a wider range and better cost per hole than competitive high performance tools.
Features:
- The advanced T-A Pro insert combines a coating and geometry specifically designed to achieve optimal results in ISO material drilling applications
- T-A Pro inserts can be used with the previous T-A insert holders
Product Specifications
| # MFG | HTA3A15-40CM |
| Body Length (mm) | 673.22mm |
| Drill Depth (mm) | 616.46mm |
| Flute Type | Straight |
| Length Type | 15XD |
| Maximum Diameter (mm) | 47.80mm |
| Minimum Diameter (mm) | 35.07mm |
| Overall Length (mm) | 743.22mm |
| Series | 3 |
| Shank Diameter (mm) | 40mm |
| Shank Length (mm) | 70mm |
| Shank Type | Cylindrical |
