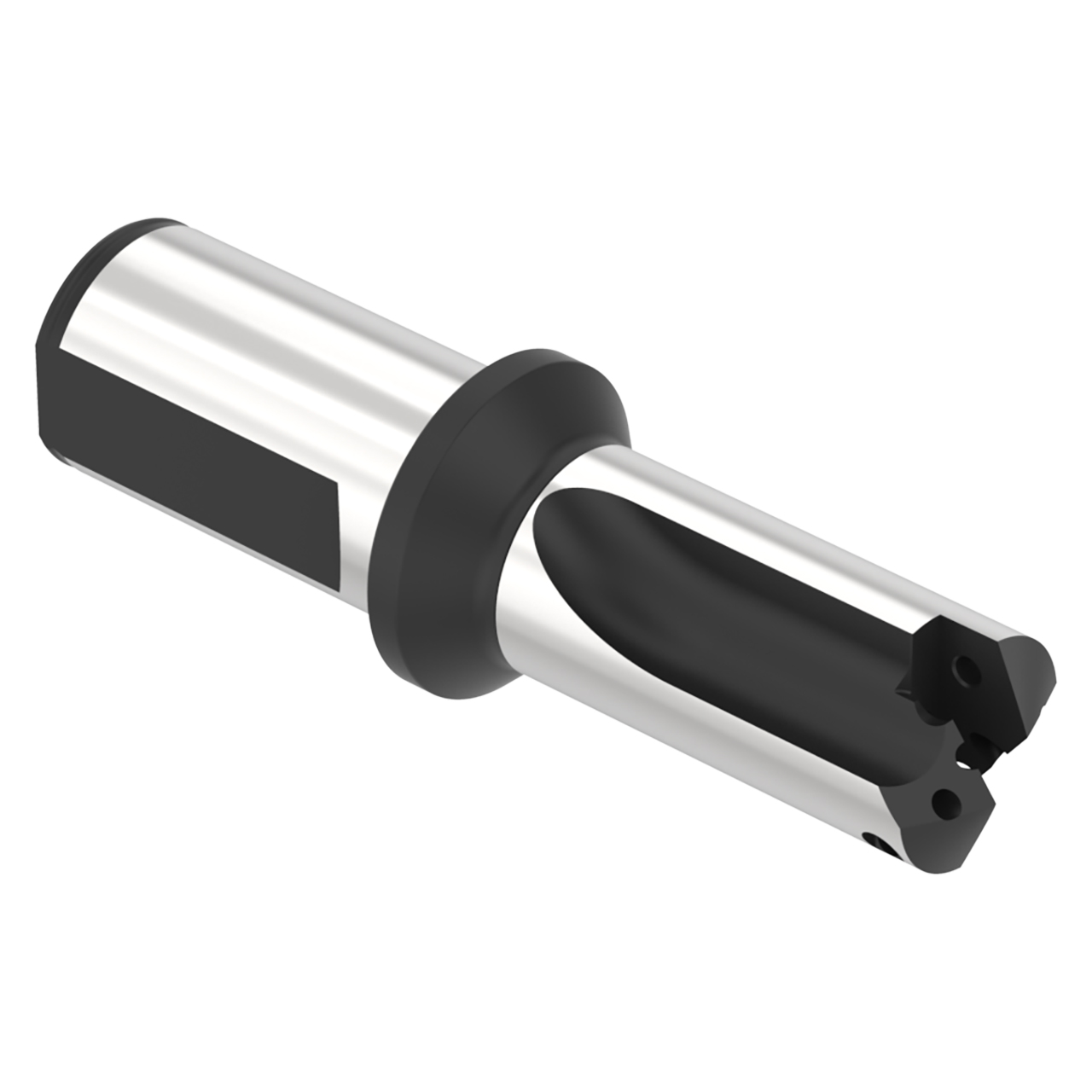

Allied Machine and Engineering HTA3B01-40FM | 47.80mm Diameter x 40.00mm Shank Stub Length Flanged Indexable Spade Drill

$354.00 $318.60
(You save $35.40)
interval quantity:
1
SKU:
23143075
UPC:
Weight:
2.88 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

The T-A Pro is the culmination of years of application wins and losses, taking what was typically known as a general purpose tool and making it the go-to for all applications, providing a wider range and better cost per hole than competitive high performance tools.

Features:

  • The advanced T-A Pro insert combines a coating and geometry specifically designed to achieve optimal results in ISO material drilling applications
  • T-A Pro inserts can be used with the previous T-A insert holders

Product Specifications
# MFGHTA3B01-40FM
Body Length (mm)92.3mm
Drill Depth (mm)41.1mm
Flute TypeStraight
Length TypeStub
Maximum Diameter (mm)47.80mm
Minimum Diameter (mm)37.79mm
Overall Length (mm)162.3mm
Series3
Shank Diameter (mm)40mm
Shank Length (mm)70mm
Shank TypeFlanged

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
