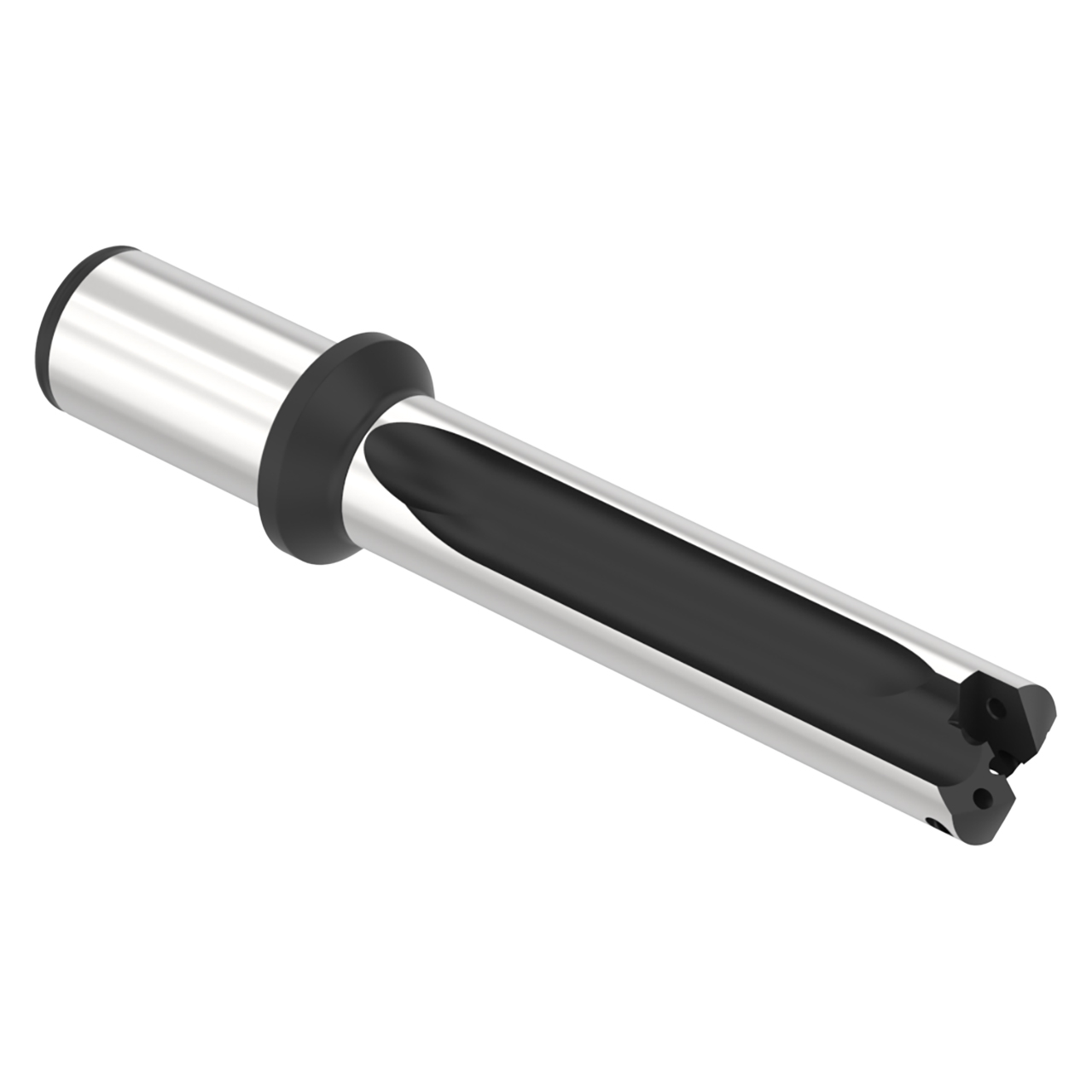

The T-A Pro is the culmination of years of application wins and losses, taking what was typically known as a general purpose tool and making it the go-to for all applications, providing a wider range and better cost per hole than competitive high performance tools.
Features:
- The advanced T-A Pro insert combines a coating and geometry specifically designed to achieve optimal results in ISO material drilling applications
- T-A Pro inserts can be used with the previous T-A insert holders
Product Specifications
| # MFG | HTA3B03-40CM |
| Body Length (mm) | 180.06mm |
| Drill Depth (mm) | 123.29mm |
| Flute Type | Straight |
| Length Type | 3XD |
| Maximum Diameter (mm) | 47.80mm |
| Minimum Diameter (mm) | 37.79mm |
| Overall Length (mm) | 250.06mm |
| Series | 3 |
| Shank Diameter (mm) | 40mm |
| Shank Length (mm) | 70mm |
| Shank Type | Cylindrical |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
3
Shank Type:
CYLINDRICAL
Shank Diameter (Decimal Inch):
1.5748"
Shank Diameter (mm):
40mm
Overall Length (mm):
250.06mm
Maximum Drill Depth (mm):
123.29mm
Flute Type:
Straight
