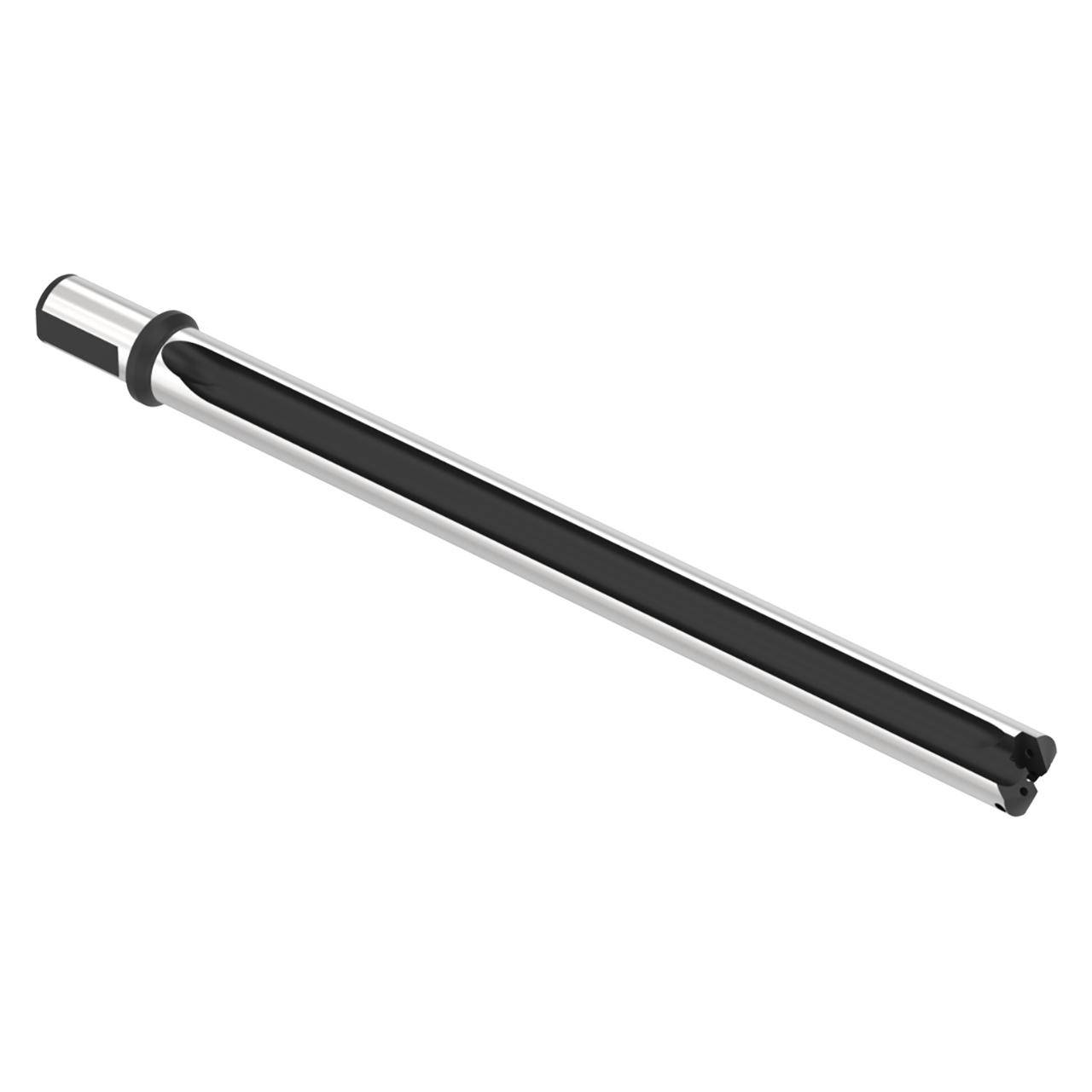

Allied Machine and Engineering HTA3D12-150F | 1-7/8" Diameter x 1-1/2" Shank 12XD Length Flanged Indexable Spade Drill

$693.00
Brand:
Allied Machine and Engineering
Series:
3
Shank Type:
FLANGED
Shank Diameter (Inch):
1-1/2"
Overall Length (Inch):
24-11/32"
Overall Length (Decimal Inch):
24.3390"
Maximum Drill Depth (Inch):
19-27/64"
Maximum Drill Depth (Decimal Inch):
19.4160"
Flute Type:
Straight
interval quantity:
1
SKU:
23143161
UPC:
Weight:
10.74 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

The T-A Pro is the culmination of years of application wins and losses, taking what was typically known as a general purpose tool and making it the go-to for all applications, providing a wider range and better cost per hole than competitive high performance tools.

Features:

  • The advanced T-A Pro insert combines a coating and geometry specifically designed to achieve optimal results in ISO material drilling applications
  • T-A Pro inserts can be used with the previous T-A insert holders

Product Specifications
# MFGHTA3D12-150F
Body Length (Decimal Inch)21.651"
Drill Depth (Decimal Inch)19.416"
Flute TypeStraight
Length Type12XD
Maximum Diameter (Decimal Inch)1.882"
Minimum Diameter (Decimal Inch)1.748"
Overall Length (Decimal Inch)24.339"
Series3
Shank Diameter (Inch)1-1/2"
Shank Length (Decimal Inch)2.688"
Shank TypeFlanged
