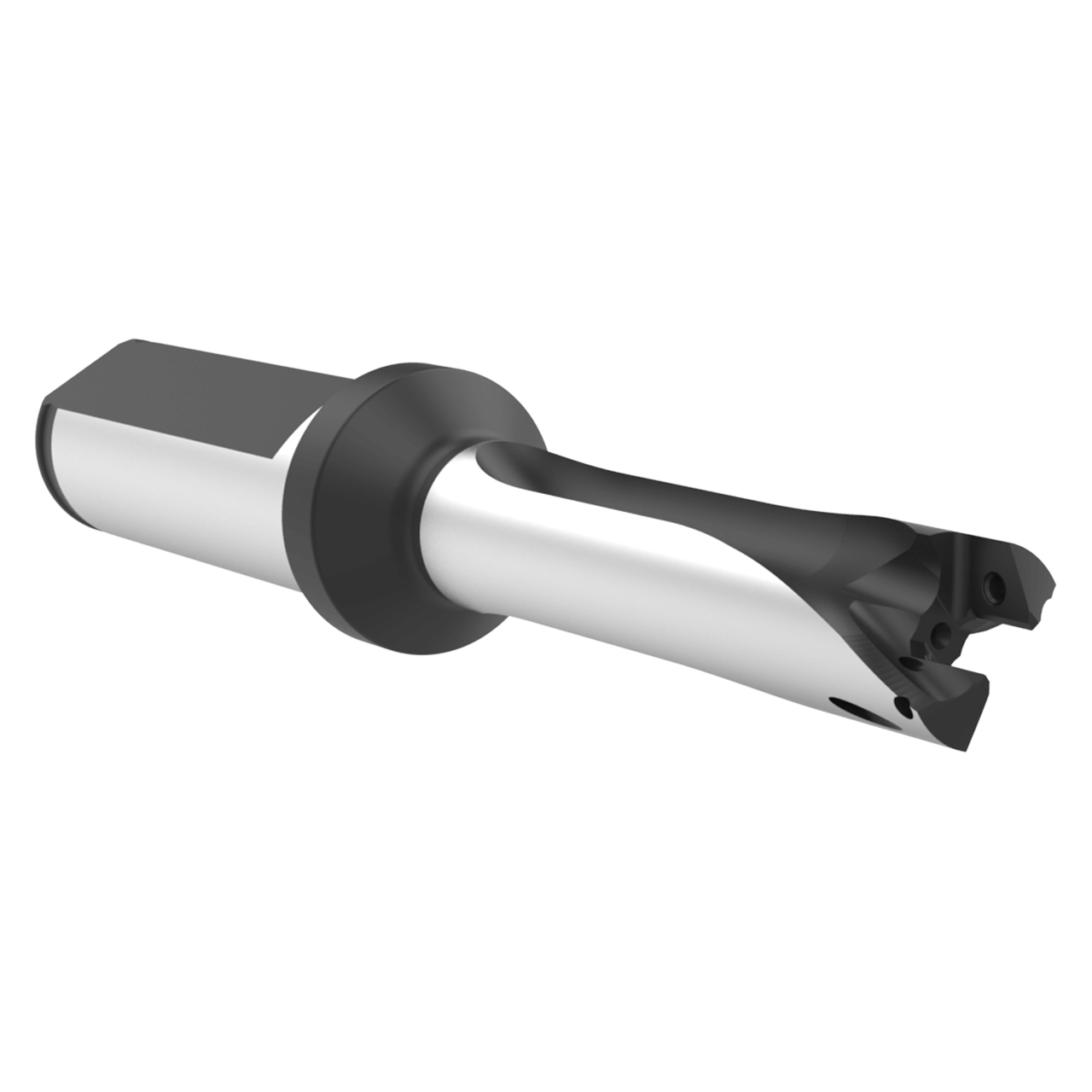

The XT Pro holders have been redesigned to provide enhanced productivity and increased effectiveness of the XT Pro inserts.
Features:
- The XT Pro holder features an increased flute area for chip evacuation
- The holder also has additional coolant to the cutting zone to increase insert life and drill stability
Product Specifications
| # MFG | HXT0314S-075F |
| Body Length (Inch) | 2.847" |
| Coolant Inlet Style Rear | TSC |
| Deep Hole | No |
| Drill Depth (Inch) | 1-25/32" |
| Flat | Yes |
| Length Type | 3xD |
| Maximum Diameter (Inch) | 0.5905" |
| Maximum Diameter (mm) | 14.99mm |
| Minimum Diameter (Inch) | 0.5512" |
| Minimum Diameter (mm) | 14mm |
| Overall Length (Inch) | 4.978" |
| Series | 14 |
| Shank Diameter (Inch) | 3/4" |
| Shank Length (Inch) | 2-1/32" |
| Shank type | Flanged |
| Tool Reference Length (Decimal Inch) | 2.948" |
