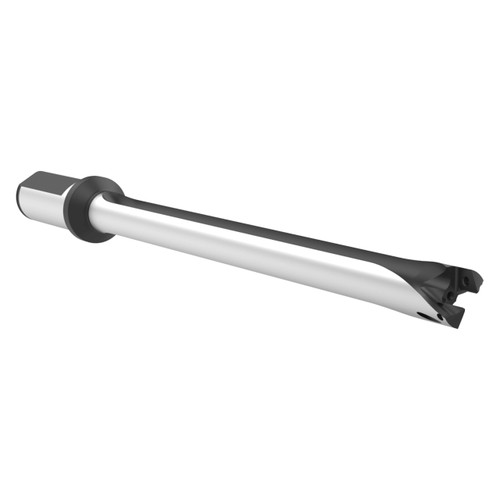

The XT Pro holders have been redesigned to provide enhanced productivity and increased effectiveness of the XT Pro inserts.
Features:
- The XT Pro holder features an increased flute area for chip evacuation
- The holder also has additional coolant to the cutting zone to increase insert life and drill stability
Product Specifications
| # MFG | HXT1020S-25FM |
| Body Length (Inch) | 10.001" |
| Coolant Inlet Style Rear | TSC |
| Deep Hole | Yes |
| Drill Depth (mm) | 219.9mm |
| Flat | Yes |
| Length Type | 10xD |
| Maximum Diameter (Inch) | 0.8660" |
| Maximum Diameter (mm) | 21.99mm |
| Minimum Diameter (Inch) | 0.7874" |
| Minimum Diameter (mm) | 20mm |
| Overall Length (mm) | 312.8mm |
| Series | 20 |
| Shank Diameter (mm) | 25mm |
| Shank Length (mm) | 56mm |
| Shank type | Flanged |
| Tool Reference Length (mm) | 256.8mm |
