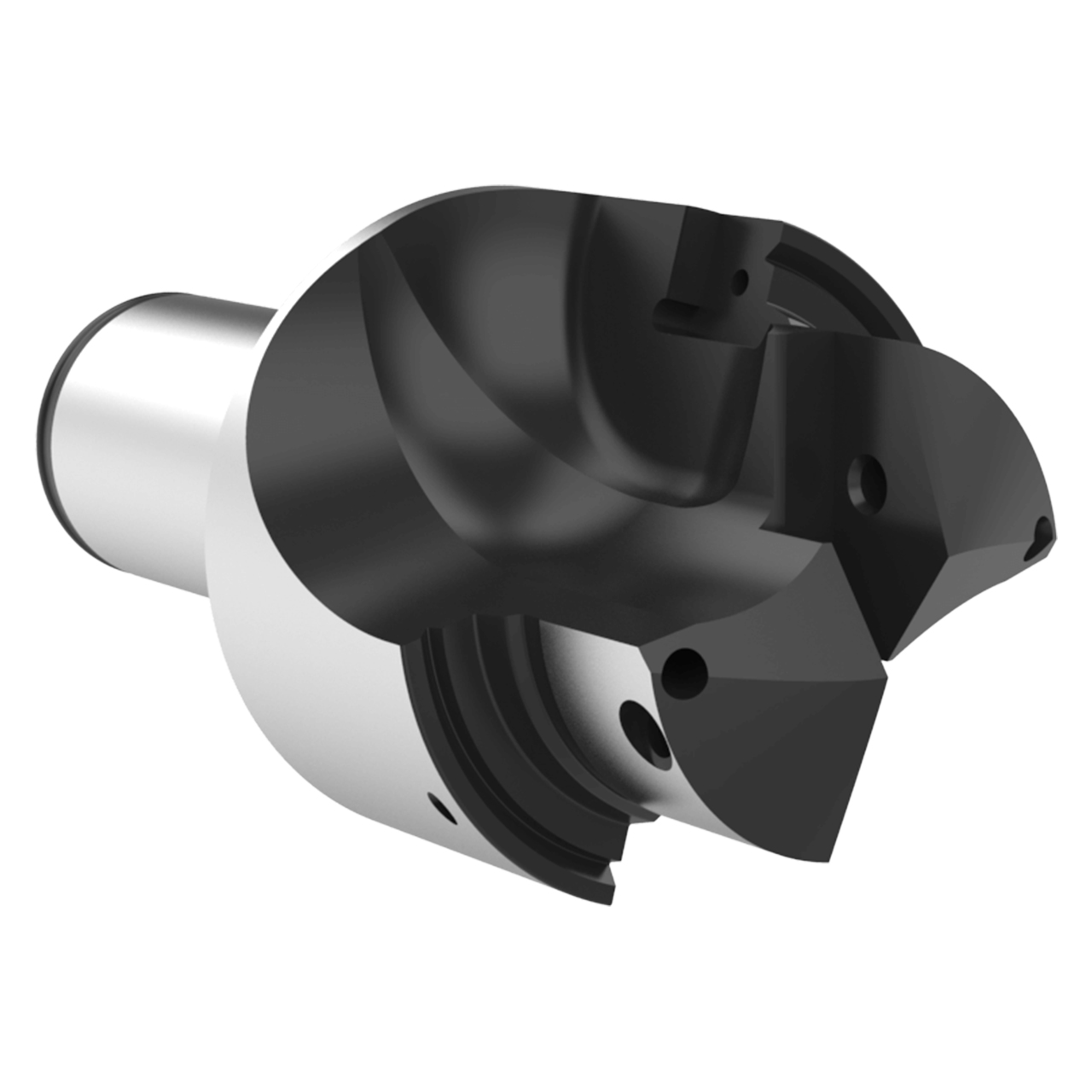

Single Operation Port Hole Drilling Solutions. Allied's revolutionary port hole drilling system combines two manufacturing functions. The patent-pending design provides excellent repeatability and surface finish while eliminating lost production time due.
Features:
- Produced to strict manufacturing tolerances
- Drill and finish forms port in one operation
Product Specifications
| # MFG | I6149-24R3-32FM |
| Pilot Diameter (Inch) | 1.811" |
| Pilot Diameter (mm) | 46mm |
| Spotface Diameter (Inch) | 2.602" |
| Spotface Diameter (mm) | 66.1mm |
| Shank Diameter (Inch) | 1.26" |
| Shank Diameter (mm) | 32mm |
| Seal Angle Diameter (Inch) | 1.985" |
| Seal Angle Diameter (mm) | 50.4mm |
| Overall Length (Inch) | 5.64" |
| Overall Length (mm) | 143.3mm |
| Seal Angle Length (Inch) | 0.13" |
| Seal Angle Length (mm) | 3.5mm |
| Pilot Length (Inch) | 0.993" |
| Pilot Length (mm) | 25.2mm |
| Shank Length (Inch) | 2.58" |
| Shank Length (mm) | 65.5mm |
| Spotface to Shoulder Length (Inch) | 1.676" |
| Spotface to Shoulder Length (mm) | 42.6mm |
| Seal Angle | 15 Degree |
| Series | 3 |
| Tube Size | -24 |
| Port Standard | ISO 6149 |
| Port Thread Size | M48 X 2 |
| Shank Type | Cylindrical |
