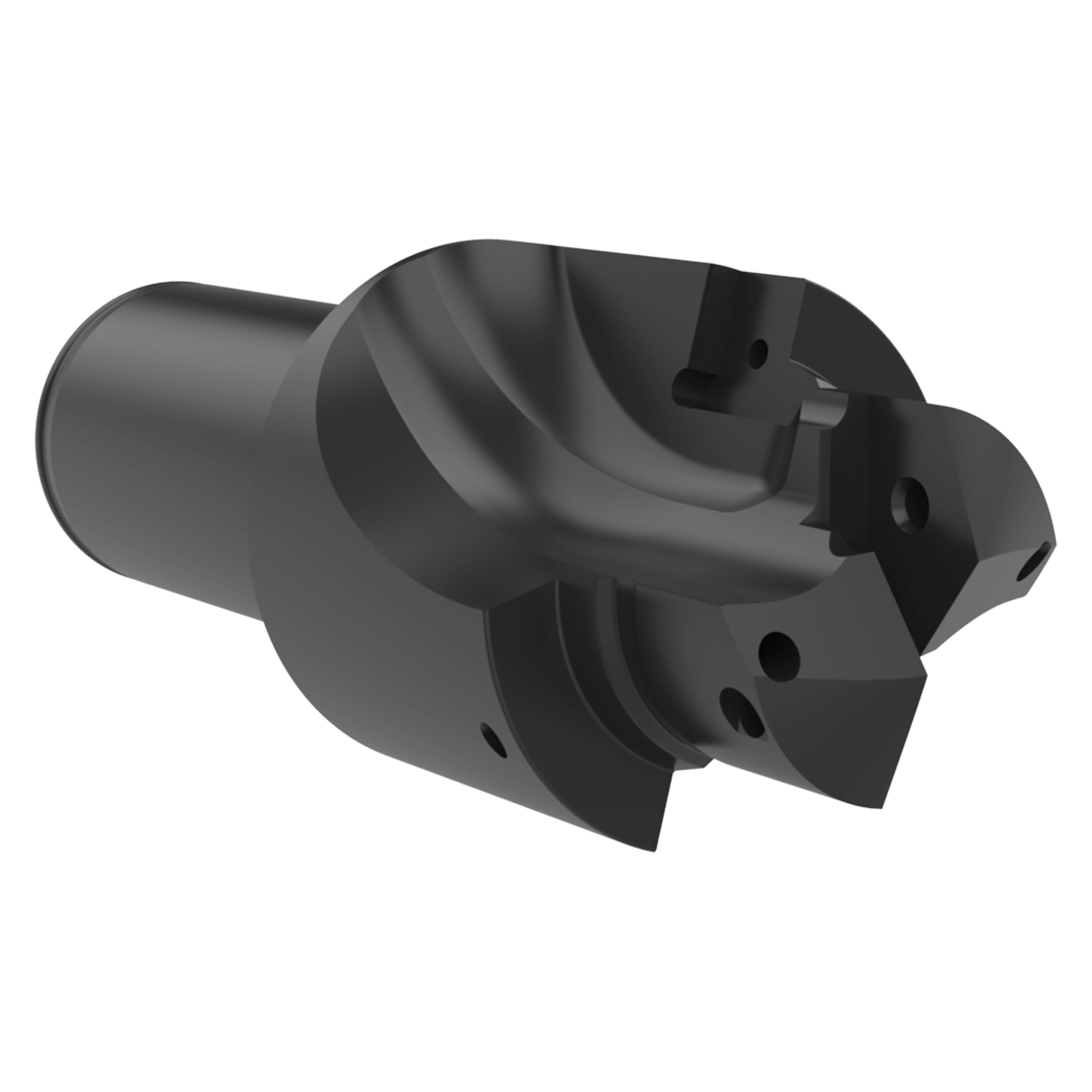

Single Operation Port Hole Drilling Solutions. Allied's revolutionary port hole drilling system combines two manufacturing functions. The patent-pending design provides excellent repeatability and surface finish while eliminating lost production time due.
Features:
- Produced to strict manufacturing tolerances
- Drill and finish forms port in one operation
Product Specifications
| # MFG | J1926-162-32FM |
| Pilot Diameter (Inch) | 1.231" |
| Pilot Diameter (mm) | 31.2mm |
| Spotface Diameter (Inch) | 1.934" |
| Spotface Diameter (mm) | 49.1mm |
| Shank Diameter (Inch) | 1.26" |
| Shank Diameter (mm) | 32mm |
| Seal Angle Diameter (Inch) | 1.4" |
| Seal Angle Diameter (mm) | 35.6mm |
| Overall Length (Inch) | 4.92" |
| Overall Length (mm) | 125mm |
| Seal Angle Length (Inch) | 0.138" |
| Seal Angle Length (mm) | 3.5mm |
| Pilot Length (Inch) | 0.906" |
| Pilot Length (mm) | 23mm |
| Shank Length (Inch) | 2.28" |
| Shank Length (mm) | 57.9mm |
| Spotface to Shoulder Length (Inch) | 1.477" |
| Spotface to Shoulder Length (mm) | 37.5mm |
| Seal Angle | 15 Degree |
| Series | 2.5 |
| Tube Size | -16 |
| Port Standard | SAE J-1926 |
| Port Thread Size | 1 5/16-12 UN-2B |
| Shank Type | Cylindrical |
