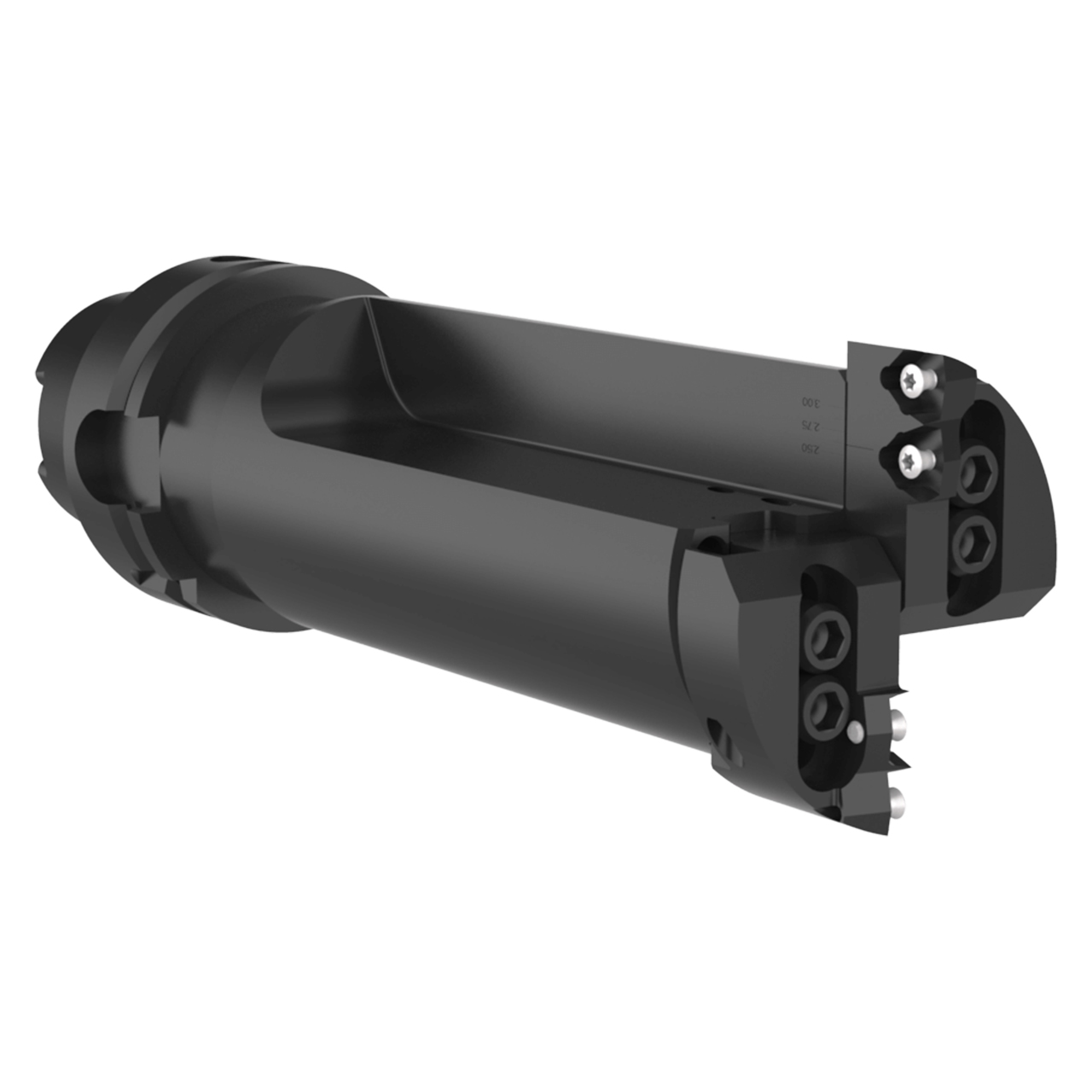

The Opening Drill is an extremely effective tool designed to enlarge existing holes.
Features:
- Cartridges can be easily replaced to protect the drill body investment
- Replaceable cartridges mean less downtime in the event of a tool crash
- Cartridges use the same insert in all pockets lowering inventory levels
- Note: Non-stocked items are NON-RETURNABLE
Product Specifications
| # MFG | OP2-1S-HSK63 |
| Drill Depth (Inch) | 4-43/64" |
| Gage Length (Inch) | 7-3/8" |
| Maximum Diameter (Inch) | 3.000" |
| Minimum Diameter (Inch) | 2.500" |
| Quantity of Inserts | 4 |
| Shank Type | HSK 63 |
| Flute Type | Straight |
| Length Type | Short |
| Series | OP2 |
| Insert Prefix | OP-05T308 |
