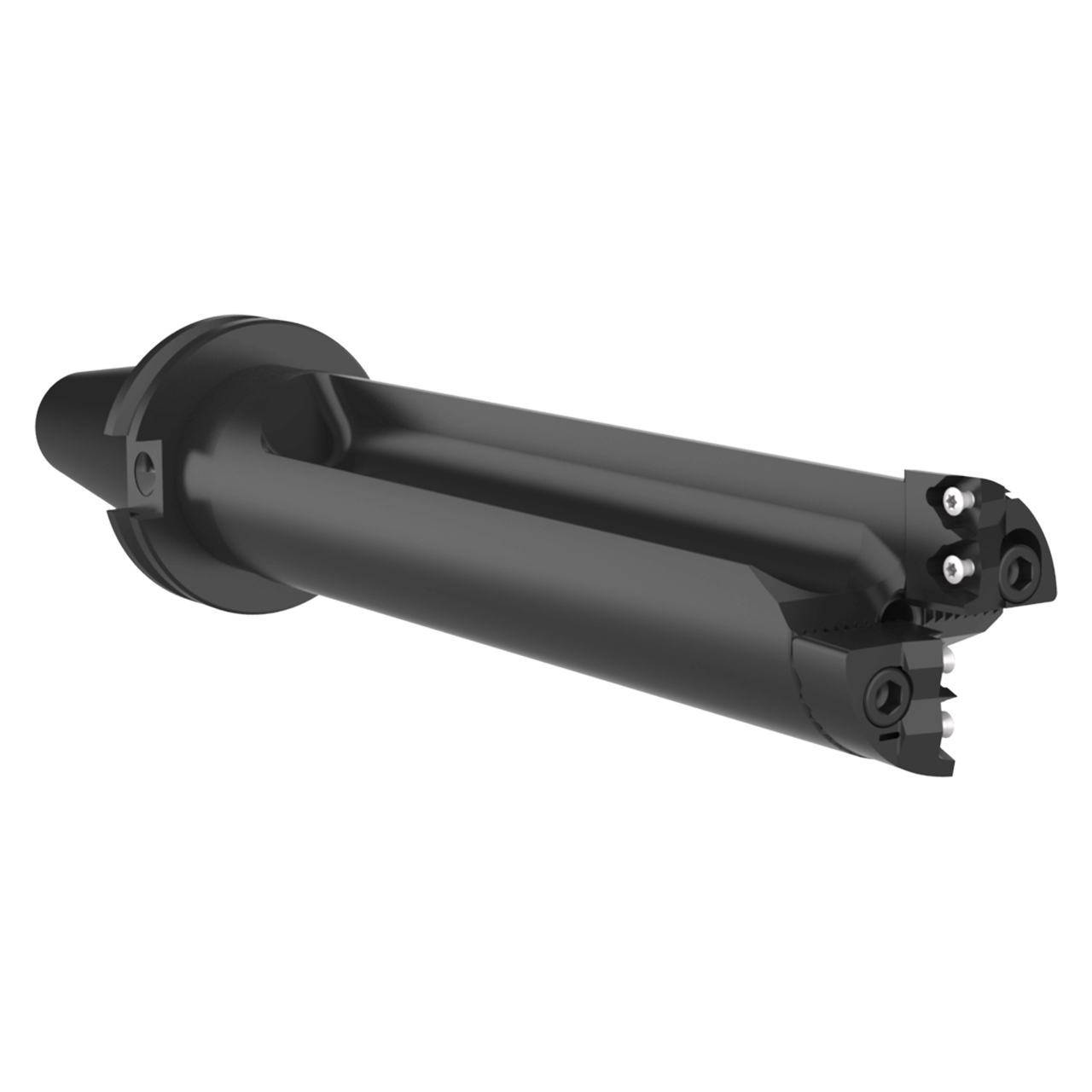

Allied Machine and Engineering R34X35-CV40 | 7-1/32" Depth x 2.000" Diameter x 3.5XD Length R34 Series Indexable Insert Drill

$1,082.00 $1,027.90
(You save $54.10)
Brand:
Allied Machine and Engineering
Drill Style:
R34
Drill Diameter (Decimal Inch):
2.0000"
Drill Diameter (mm):
50.80mm
Maximum Drill Depth (Inch):
7-1/32"
Maximum Drill Depth (Decimal Inch):
7.0312"
Maximum Drill Depth (mm):
178.59mm
Shank Type:
CV 40
Through Coolant:
Yes
Drill Depth by Diameter Ratio:
3.5 X D
interval quantity:
1
SKU:
23036926
UPC:
Weight:
6.08 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

The Revolution Drill has an innovative design that allows for adjustability of 0.200" (5.1mm) on diameter, eliminating the need for specials and/or subsequent boring operations.

Features:

  • Drills from solid-no pilot required
  • Adjustable up to 0.200" (5mm) on diameter
  • Replaceable cartridges provide re-buildable function

Product Specifications
# MFGR34X35-CV40
Drill depth (Inch)7-1/32"
Maximum Diameter (Inch)2.000"
Minimum Diameter (Inch)1.875"
Length Type3.5 X D
SeriesR34
Quantity of Inserts4
CoolantYes
Flute TypeStraight
Shank typeCV 40

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Allied Machine and Engineering
Drill Style:
R34
Drill Diameter (Decimal Inch):
2.0000"
Drill Diameter (mm):
50.80mm
Maximum Drill Depth (Inch):
7-1/32"
Maximum Drill Depth (Decimal Inch):
7.0312"
Maximum Drill Depth (mm):
178.59mm
Shank Type:
CV 40
Through Coolant:
Yes
Drill Depth by Diameter Ratio:
3.5 X D
interval quantity:
1
