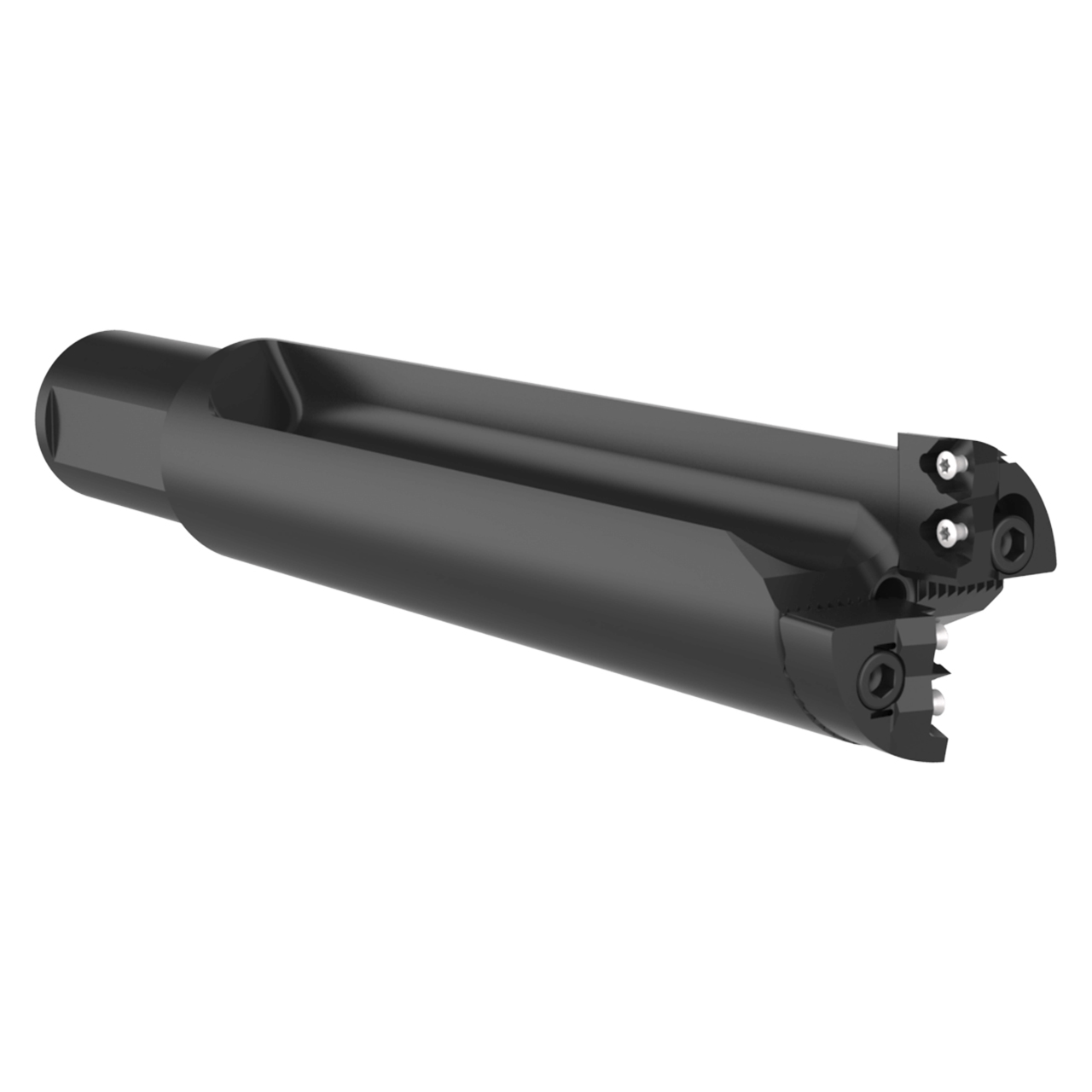

Allied Machine and Engineering R36X35-40M | 195.80mm Depth x 55.90mm Diameter x 40.00mm Shank x 3.5XD Length R36 Series Indexable Insert Drill

$929.00 $882.55
(You save $46.45)
Brand:
Allied Machine and Engineering
Drill Style:
R36
Drill Diameter (Inch):
2-13/64"
Drill Diameter (Decimal Inch):
2.2000"
Drill Diameter (mm):
55.90mm
Maximum Drill Depth (Inch):
7-45/64"
Maximum Drill Depth (Decimal Inch):
7.7087"
Maximum Drill Depth (mm):
195.80mm
Shank Type:
Straight
Through Coolant:
Yes
Drill Depth by Diameter Ratio:
3.5 X D
interval quantity:
1
SKU:
23036915
UPC:
Weight:
6.04 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

The Revolution Drill has an innovative design that allows for adjustability of 0.200" (5.1mm) on diameter, eliminating the need for specials and/or subsequent boring operations.

Features:

  • Drills from solid-no pilot required
  • Adjustable up to 0.200" (5mm) on diameter
  • Replaceable cartridges provide re-buildable function

Product Specifications
# MFGR36X35-40M
Drill depth (mm)195.80mm
Maximum Diameter (mm)55.9mm
Minimum Diameter (mm)50.8mm
Shank Diameter (mm)40.00mm
Length Type3.5 X D
Overall Length (mm)289.4mm
SeriesR36
Quantity of Inserts4
CoolantYes
Flute TypeStraight
Shank typeStraight
