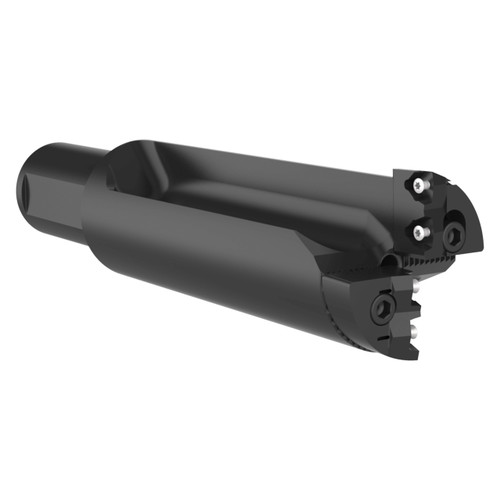

The Revolution Drill has an innovative design that allows for adjustability of 0.200" (5.1mm) on diameter, eliminating the need for specials and/or subsequent boring operations.
Features:
- Drills from solid-no pilot required
- Adjustable up to 0.200" (5mm) on diameter
- Replaceable cartridges provide re-buildable function
Product Specifications
| # MFG | R38X22-150L |
| Drill depth (Inch) | 5-29/64" |
| Maximum Diameter (Inch) | 2.400" |
| Minimum Diameter (Inch) | 2.20" |
| Shank Diameter (Inch) | 1-1/2" |
| Length Type | 2.2 X D |
| Overall Length (Inch) | 10-25/64" |
| Series | R38 |
| Quantity of Inserts | 4 |
| Coolant | Yes |
| Flute Type | Straight |
| Shank type | Straight |
| Pipe tap rear (Inch) | 1/4 NPT |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Drill Style:
R38
Drill Diameter (Inch):
2-13/64"
Drill Diameter (Decimal Inch):
2.2000"
Drill Diameter (mm):
60.96mm
Maximum Drill Depth (Inch):
5-29/64"
Maximum Drill Depth (Decimal Inch):
5.4531"
Maximum Drill Depth (mm):
138.50mm
Shank Type:
Straight
Through Coolant:
Yes
Drill Depth by Diameter Ratio:
2.2 X D
