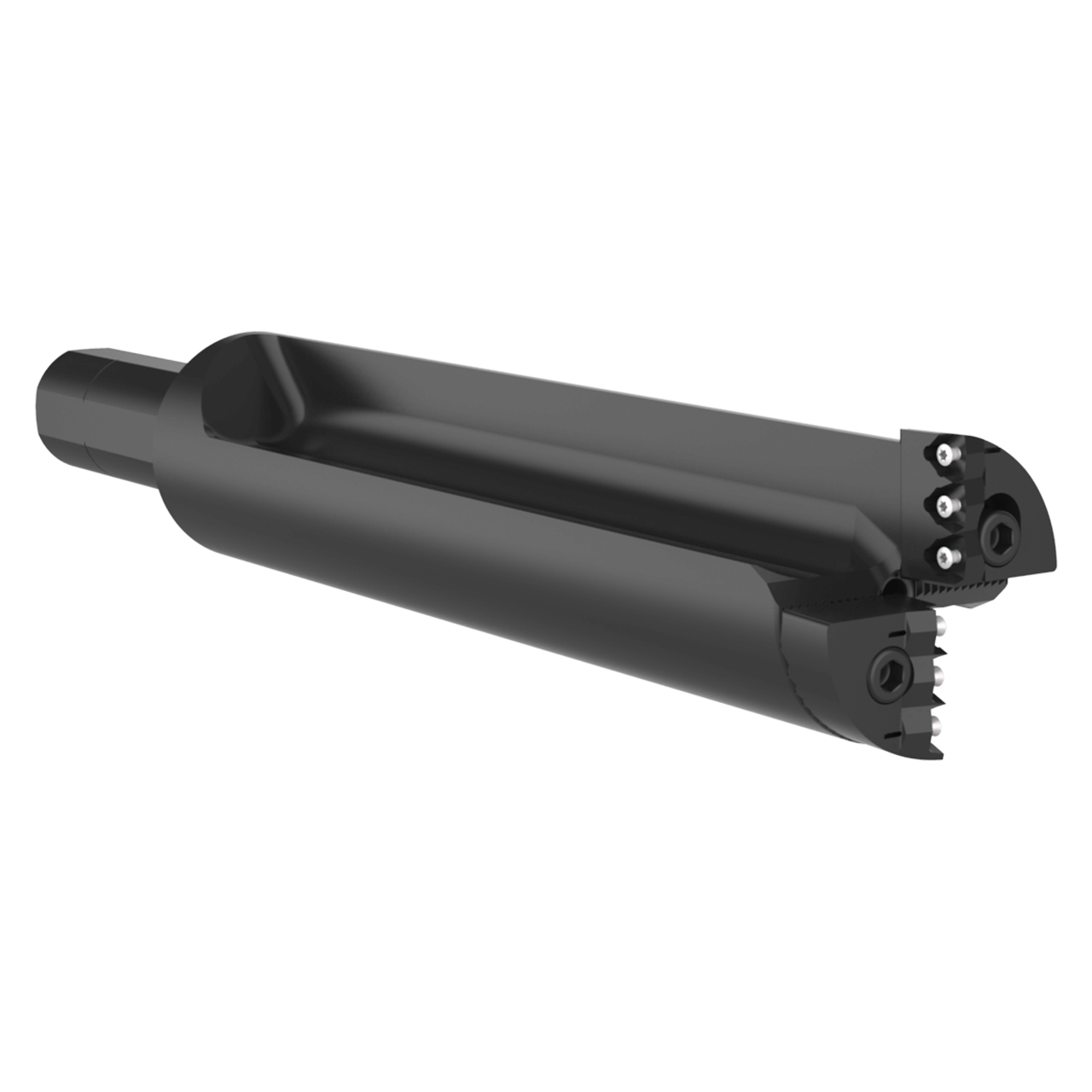

Allied Machine and Engineering R44X35-150L | 9-61/64" Depth x 2.800" Diameter x 3.5XD Length R44 Series Indexable Insert Drill

$1,205.00 $1,144.75
(You save $60.25)
Brand:
Allied Machine and Engineering
Drill Style:
R44
Drill Diameter (Inch):
2-51/64"
Drill Diameter (Decimal Inch):
2.8000"
Drill Diameter (mm):
71.12mm
Maximum Drill Depth (Inch):
9-61/64"
Maximum Drill Depth (Decimal Inch):
9.9531"
Maximum Drill Depth (mm):
252.80mm
Shank Type:
Straight
Through Coolant:
Yes
Drill Depth by Diameter Ratio:
3.5 X D
interval quantity:
1
SKU:
23036881
UPC:
Weight:
11.90 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

The Revolution Drill has an innovative design that allows for adjustability of 0.200" (5.1mm) on diameter, eliminating the need for specials and/or subsequent boring operations.

Features:

  • Drills from solid-no pilot required
  • Adjustable up to 0.200" (5mm) on diameter
  • Replaceable cartridges provide re-buildable function

Product Specifications
# MFGR44X35-150L
Drill depth (Inch)9-61/64"
Maximum Diameter (Inch)2.800"
Minimum Diameter (Inch)2.60"
Shank Diameter (Inch)1-1/2"
Length Type3.5 X D
Overall Length (Inch)15-1/4"
SeriesR44
Quantity of Inserts6
CoolantYes
Flute TypeStraight
Shank typeStraight
Pipe tap rear (Inch)1/4 NPT
