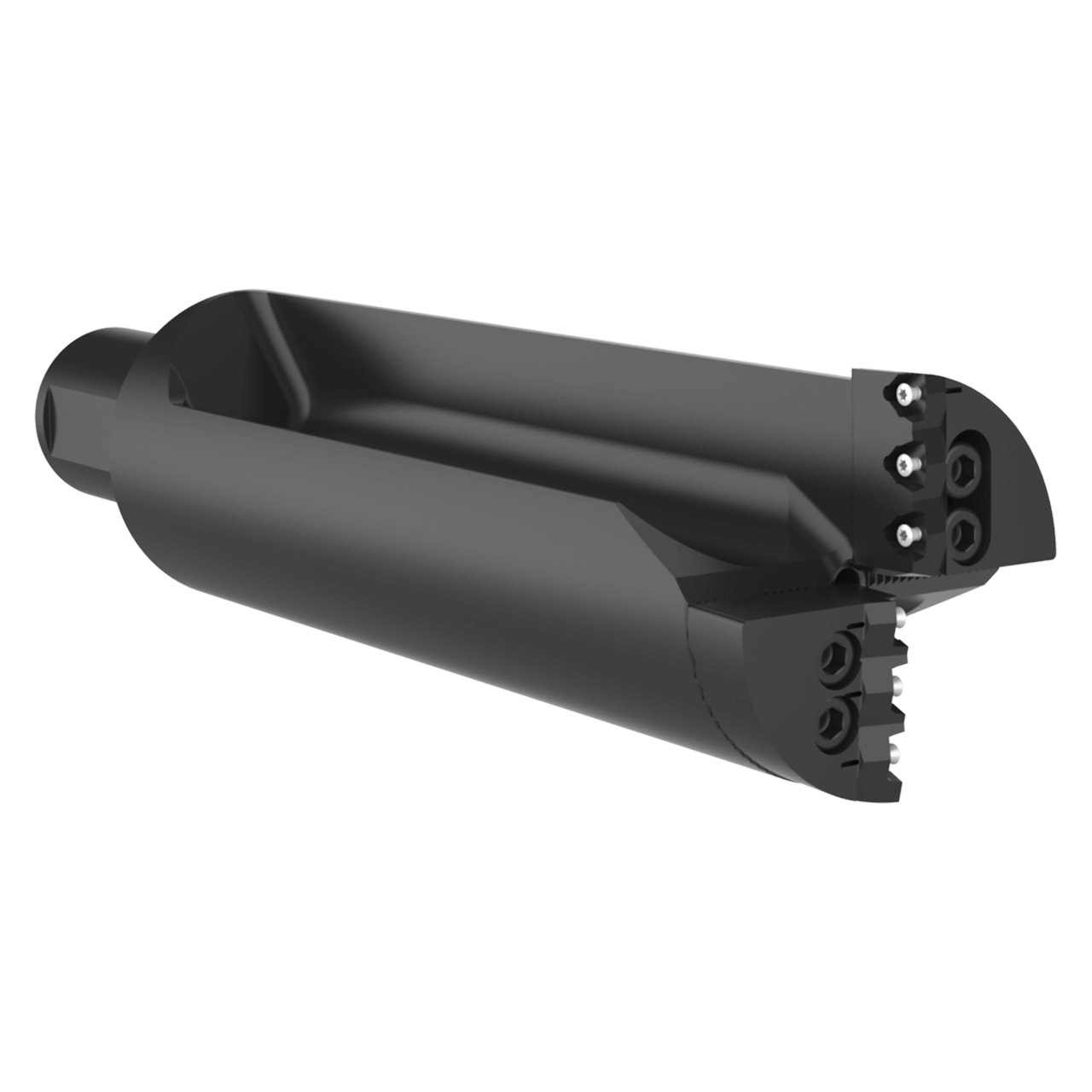

Allied Machine and Engineering R54X25-50M | 226.30mm Depth x 91.40mm Diameter x 50.00mm Shank x 2.5XD Length R54 Series Indexable Insert Drill

$1,399.00 $1,329.05
(You save $69.95)
Brand:
Allied Machine and Engineering
Drill Style:
R54
Drill Diameter (Inch):
3-19/32"
Drill Diameter (Decimal Inch):
3.6000"
Drill Diameter (mm):
91.40mm
Maximum Drill Depth (Inch):
8-29/32"
Maximum Drill Depth (Decimal Inch):
8.9094"
Maximum Drill Depth (mm):
226.30mm
Shank Type:
Straight
Through Coolant:
Yes
Drill Depth by Diameter Ratio:
2.5 X D
interval quantity:
1
SKU:
23036856
UPC:
Weight:
18.22 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

The Revolution Drill has an innovative design that allows for adjustability of 0.200" (5.1mm) on diameter, eliminating the need for specials and/or subsequent boring operations.

Features:

  • Drills from solid-no pilot required
  • Adjustable up to 0.200" (5mm) on diameter
  • Replaceable cartridges provide re-buildable function

Product Specifications
# MFGR54X25-50M
Drill depth (mm)226.30mm
Maximum Diameter (mm)91.4mm
Minimum Diameter (mm)86.4mm
Shank Diameter (mm)50.00mm
Length Type2.5 X D
Overall Length (mm)346.9mm
SeriesR54
Quantity of Inserts6
CoolantYes
Flute TypeStraight
Shank typeStraight
