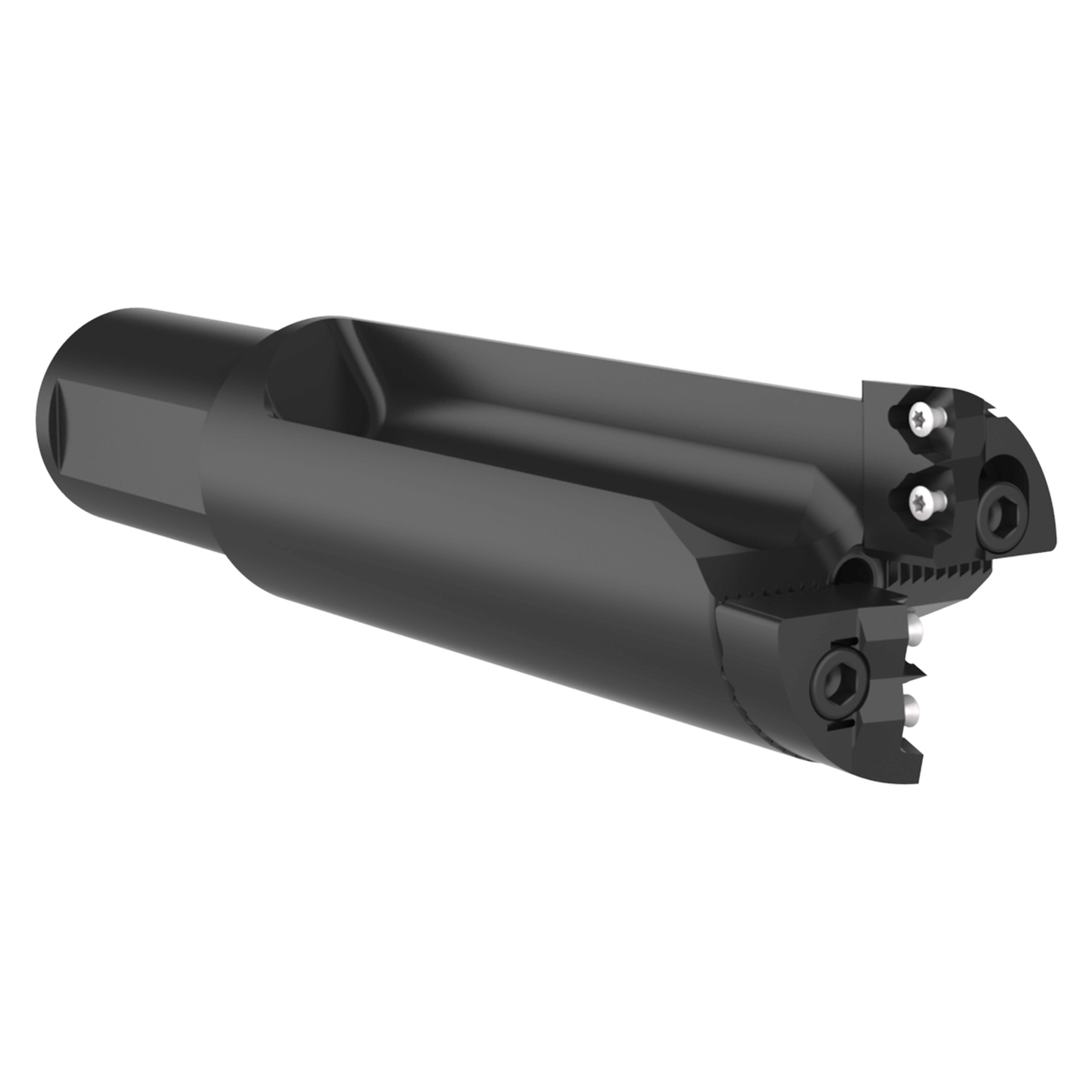

Allied Machine and Engineering SP36X22-40M | 124.00mm Depth x 55.90mm Diameter x 40.00mm Shank x 2.2XD Length R36 Series Indexable Insert Drill

$879.00 $835.05
(You save $43.95)
Brand:
Allied Machine and Engineering
Drill Style:
R36
Drill Diameter (Inch):
2-13/64"
Drill Diameter (Decimal Inch):
2.2000"
Drill Diameter (mm):
55.90mm
Maximum Drill Depth (Inch):
4-7/8"
Maximum Drill Depth (Decimal Inch):
4.8819"
Maximum Drill Depth (mm):
124.00mm
Shank Type:
Straight
Through Coolant:
Yes
Drill Depth by Diameter Ratio:
2.2 X D
interval quantity:
1
SKU:
23036837
UPC:
Weight:
4.52 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

The Revolution Drill has an innovative design that allows for adjustability of 0.200" (5.1mm) on diameter, eliminating the need for specials and/or subsequent boring operations.

Features:

  • Drills from solid-no pilot required
  • Adjustable up to 0.200" (5mm) on diameter
  • Replaceable cartridges provide re-buildable function

Product Specifications
# MFGSP36X22-40M
Drill depth (mm)124.00mm
Maximum Diameter (mm)55.9mm
Minimum Diameter (mm)50.8mm
Shank Diameter (mm)40.00mm
Length Type2.2 X D
Overall Length (mm)217.6mm
SeriesR36
Quantity of Inserts4
CoolantYes
Flute TypeStraight
Shank typeStraight

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
