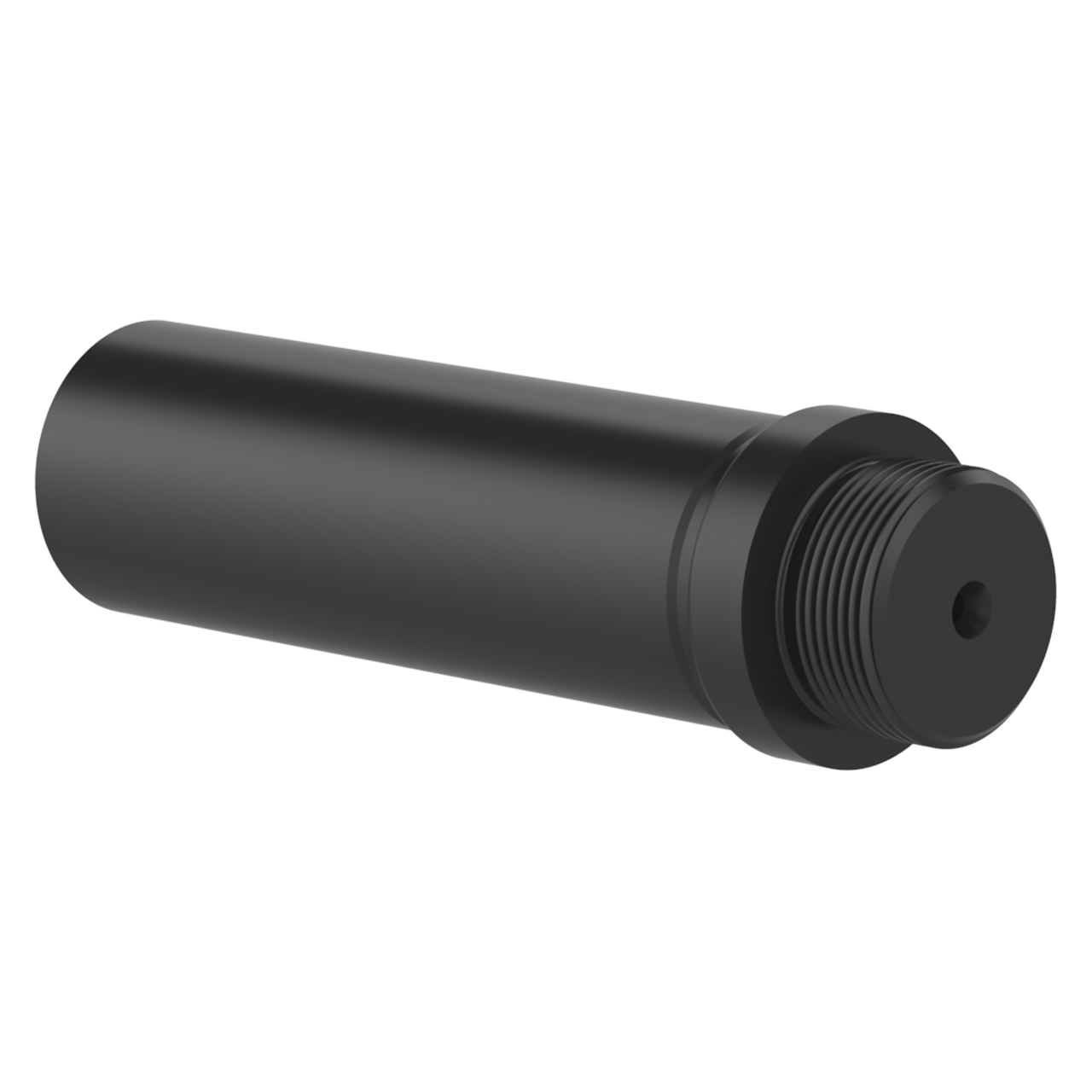

Allied Criterion boring systems are a complete solution for precision holemaking requirements. One can create a specialized assembly to meet application requirements using the large selection of standard components.
Features:
- CNC holders ground to AT3 taper tolerance
- Large mounting surface on CNC holders for rigidity and stability
- All CNC holders are through the spindle coolant capable
Product Specifications
| # MFG | SS1000-087520 |
| Body Diameter (Inch) | 1.11" |
| Bore Depth (Inch) | 0.250" |
| Male Thread Size (Inch) | 7/8-20" |
| Overall Length (Inch) | 3.37" |
| Shank Diameter (Inch) | 1.000" |
| Shank Length (Inch) | 3.12" |
| Flange Width (Inch) | 0.250" |
| Connection Style | Threaded |
| Industry Standard Shank | Straight |
