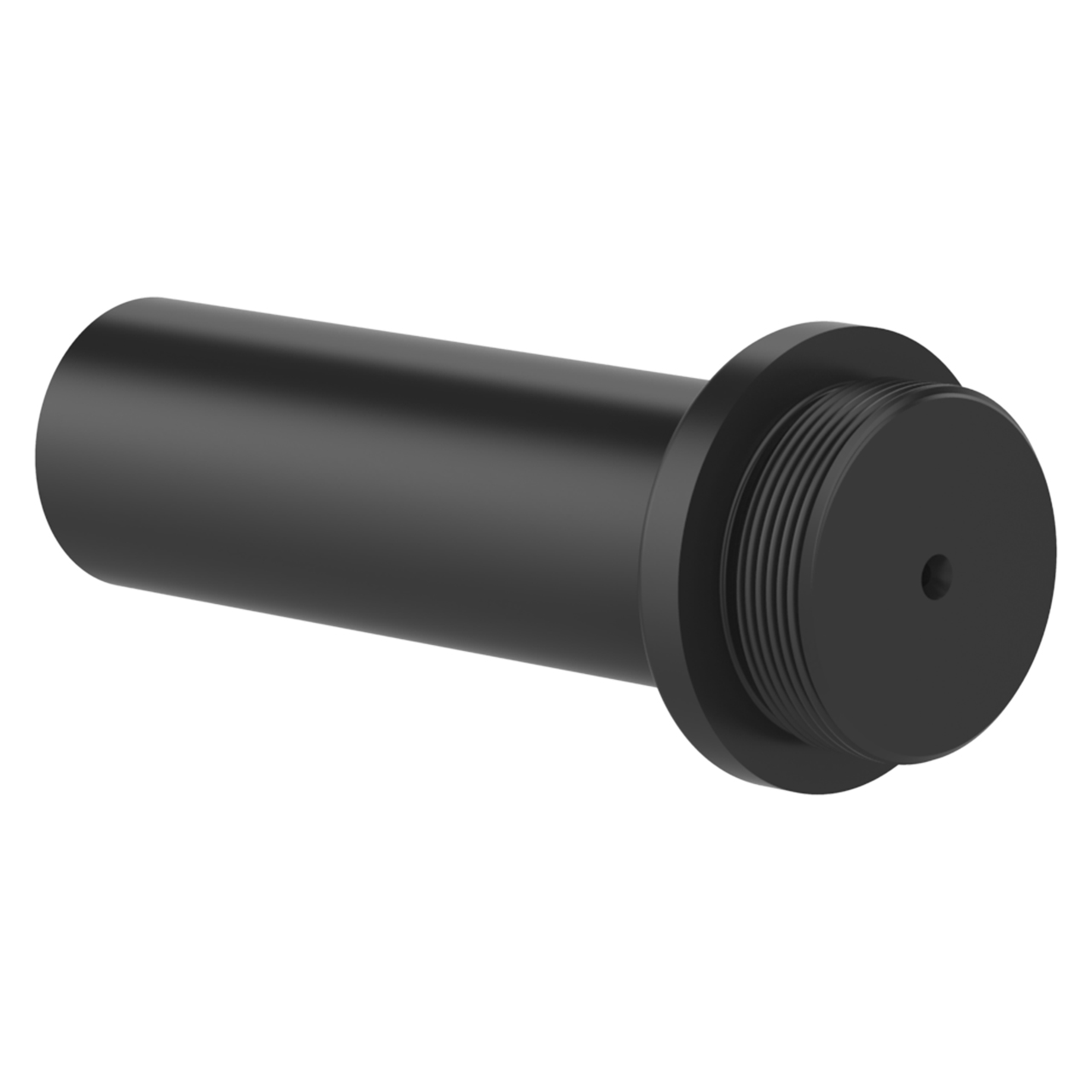

Allied Criterion boring systems are a complete solution for precision holemaking requirements. One can create a specialized assembly to meet application requirements using the large selection of standard components.
Features:
- CNC holders ground to AT3 taper tolerance
- Large mounting surface on CNC holders for rigidity and stability
- All CNC holders are through the spindle coolant capable
Product Specifications
| # MFG | SS1250-150018 |
| Body Diameter (Inch) | 1.86" |
| Bore Depth (Inch) | 0.250" |
| Male Thread Size (Inch) | 1-1/2-18" |
| Overall Length (Inch) | 4.13" |
| Shank Diameter (Inch) | 1.250" |
| Shank Length (Inch) | 3.87" |
| Flange Width (Inch) | 0.250" |
| Connection Style | Threaded |
| Industry Standard Shank | Straight |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Shank Diameter (Inch):
1-1/4"
Shank Diameter (Decimal Inch):
1.2500"
Shank Diameter (mm):
31.75mm
Overall Length (Inch):
4-1/8"
Overall Length (Decimal Inch):
4.1300"
Overall Length (mm):
104.90mm
