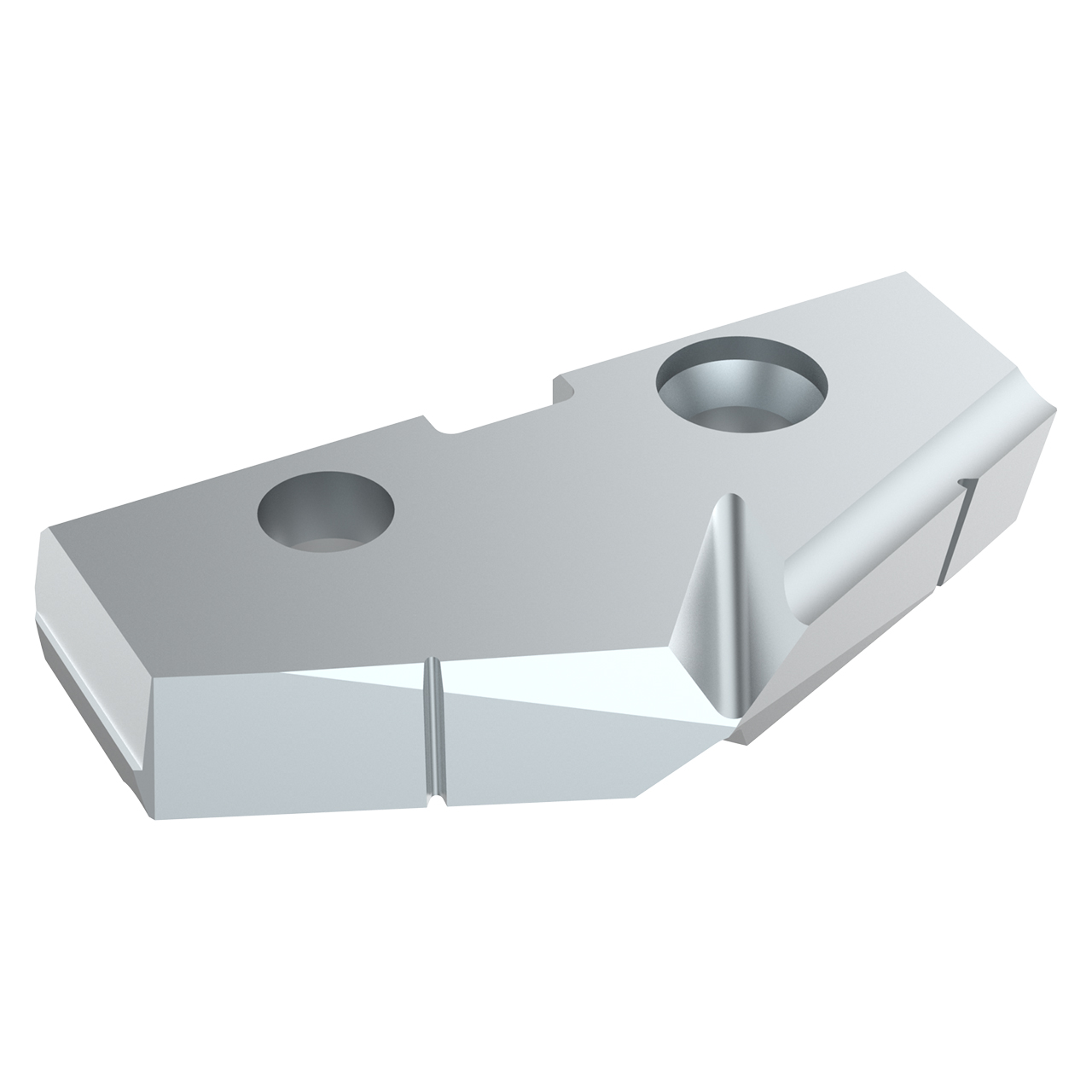

Allied Machine and Engineering TAN3-43.10 | 43.10mm Diameter x 6.35mm Thickness 132 Degree Included Angle TiCN Coated Carbide 3 Series Spade Drill Insert

$118.25 $110.70
(You save $7.55)
interval quantity:
1
SKU:
23142214
Weight:
0.13 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

The T-A Pro is the culmination of years of application wins and losses, taking what was typically known as a general purpose tool and making it the go-to for all applications, providing a wider range and better cost per hole than competitive high performance tools.

Features:

  • The advanced T-A Pro insert combines a coating and geometry specifically designed to achieve optimal results in ISO material drilling applications
  • Proprietary coolant outlet configuration provides superior performance even in low coolant applications (200 PSI/13.80 BAR)
  • T-A Pro inserts can be used with the previous T-A insert holders

Product Specifications
# MFGTAN3-43.10
Diameter (Decimal Inch)1.6968"
Diameter (Inch)1-45/64"
Diameter (mm)43.10mm
Thickness (Decimal Inch)0.2500"
Thickness (Inch)1/4"
Thickness (mm)6.35mm
Series3
Included Angle132 Degree
CoatingTiCN
MaterialCarbide
