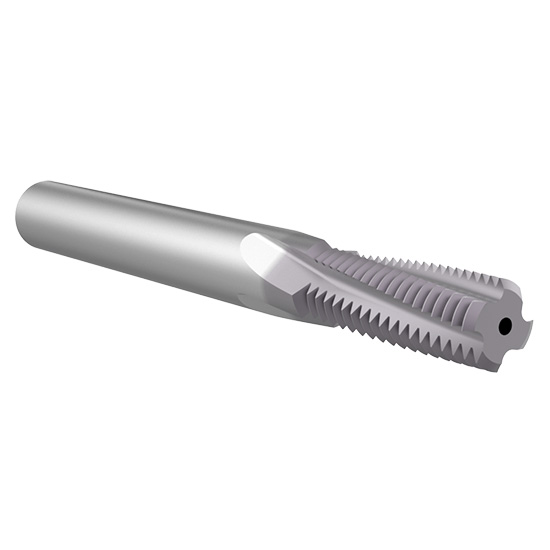

Allied Machine and Engineering TM12507CHM | 1-1/8-7 UN x 19.90mm Diameter x 20.00mm Shank x 36.10mm LOC x 105.00mm OAL 5 Flute TiAIN Coated Helical Flute Thread Mill

$432.50 $406.55
(You save $25.95)
Brand:
Allied Machine and Engineering
Thread Size (Inch):
1-1/8"
Thread Size (Decimal Inch):
1.1250"
Thread Size (mm):
28.58mm
Thread Type:
Internal/External
Pitch (Inch):
9/32"
Pitch (Decimal Inch):
0.2800"
Pitch (mm):
7.00mm
Cutter Diameter (Inch):
25/32"
Cutter Diameter (Decimal Inch):
0.7835"
Cutter Diameter (mm):
18.92mm
Shank Diameter (Inch):
25/32"
Shank Diameter (Decimal Inch):
0.7874"
Shank Diameter (mm):
20.00mm
Number of Flutes:
5
Length of Cut (Inch):
1-27/64"
Length of Cut (Decimal Inch):
1.4213"
Length of Cut (mm):
36.10mm
Finish/Coating:
TiAIN
Material:
Carbide
Through Coolant (yes/no):
Yes
interval quantity:
1
SKU:
15014604
UPC:
768413411768
Weight:
0.85 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping
Allied Machine and Engineering TM12507CHM | 1-1/8-7 UN x 19.90mm Diameter x 20.00mm Shank x 36.10mm LOC x 105.00mm OAL 5 Flute TiAIN Coated Helical Flute Thread Mill

The threadmill range is manufactured from solid carbide with ground helical flutes and a TiAlN coating as standard. These products have been designed for the low volume/low cost production environment, providing excellent performance at a competitive price.

Features:

  • Full product offering of UN,NPT,NPTF, and METRIC tools
  • TiAlN coated for increased tool life over uncoated tools
  • Extensive range of thread forms
  • Coolant through
  • Thread Per Inch : 7
  • Thread Form : UN

Product Specifications
#MFGTM12507CHM
Thread Size (Inch)1-1/8"
Thread Size (Decimal Inch)1.1250"
Thread Size (mm)28.58mm
Cutter Diameter (Inch)25/32"
Cutter Diameter (Decimal Inch)0.7835"
Cutter Diameter (mm)18.92mm
Pitch (Inch)9/32"
Pitch (Decimal Inch)0.2800"
Pitch (mm)7.00mm
Shank Diameter (Inch)25/32"
Shank Diameter (Decimal Inch)0.7874"
Shank Diameter (mm)20.00mm
Length of Cut (Inch)1-27/64"
Length of Cut (Decimal Inch)1.4213"
Length of Cut (mm)36.10mm
Number of Flutes5
Thread TypeInternal/External
Finish/CoatingTiAIN
MaterialCarbide
Through Coolant (yes/no)Yes

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Allied Machine and Engineering
Thread Size (Inch):
1-1/8"
Thread Size (Decimal Inch):
1.1250"
Thread Size (mm):
28.58mm
Thread Type:
Internal/External
Pitch (Inch):
9/32"
Pitch (Decimal Inch):
0.2800"
Pitch (mm):
7.00mm
Cutter Diameter (Inch):
25/32"
Cutter Diameter (Decimal Inch):
0.7835"
Cutter Diameter (mm):
18.92mm
Shank Diameter (Inch):
25/32"
Shank Diameter (Decimal Inch):
0.7874"
Shank Diameter (mm):
20.00mm
Number of Flutes:
5
Length of Cut (Inch):
1-27/64"
Length of Cut (Decimal Inch):
1.4213"
Length of Cut (mm):
36.10mm
Finish/Coating:
TiAIN
Material:
Carbide
Through Coolant (yes/no):
Yes
interval quantity:
1
