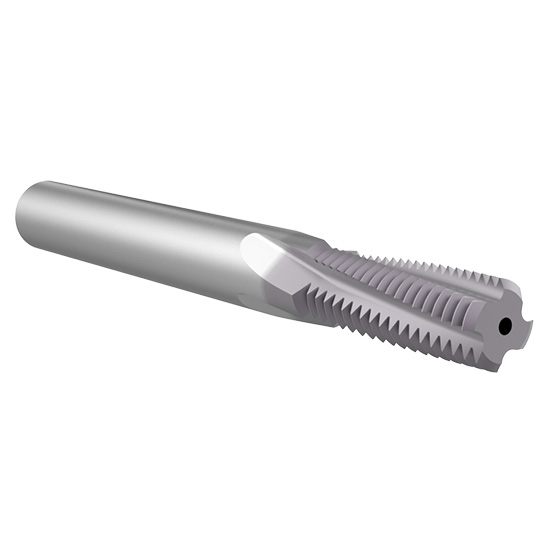

Allied Machine and Engineering TM13706CHM | 1-3/8-6 UN x 19.90mm Diameter x 20.00mm Shank x 38.10mm LOC x 105.00mm OAL 5 Flute TiAIN Coated Helical Flute Thread Mill

$432.50 $406.55
(You save $25.95)
Brand:
Allied Machine and Engineering
Thread Size (Inch):
1-3/8"
Thread Size (Decimal Inch):
1.3750"
Thread Size (mm):
34.93mm
Thread Type:
Internal/External
Pitch (Inch):
15/64"
Pitch (Decimal Inch):
0.2400"
Pitch (mm):
6.00mm
Cutter Diameter (Inch):
25/32"
Cutter Diameter (Decimal Inch):
0.7835"
Cutter Diameter (mm):
18.92mm
Shank Diameter (Inch):
25/32"
Shank Diameter (Decimal Inch):
0.7874"
Shank Diameter (mm):
20.00mm
Number of Flutes:
5
Length of Cut (Inch):
1-1/2"
Length of Cut (Decimal Inch):
1.5000"
Length of Cut (mm):
38.10mm
Finish/Coating:
TiAIN
Material:
Carbide
Through Coolant (yes/no):
Yes
interval quantity:
1
SKU:
15014588
UPC:
768413411744
Weight:
0.83 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping
Allied Machine and Engineering TM13706CHM | 1-3/8-6 UN x 19.90mm Diameter x 20.00mm Shank x 38.10mm LOC x 105.00mm OAL 5 Flute TiAIN Coated Helical Flute Thread Mill

The threadmill range is manufactured from solid carbide with ground helical flutes and a TiAlN coating as standard. These products have been designed for the low volume/low cost production environment, providing excellent performance at a competitive price.

Features:

  • Full product offering of UN,NPT,NPTF, and METRIC tools
  • TiAlN coated for increased tool life over uncoated tools
  • Extensive range of thread forms
  • Coolant through
  • Thread Per Inch : 6
  • Thread Form : UN

Product Specifications
#MFGTM13706CHM
Thread Size (Inch)1-3/8"
Thread Size (Decimal Inch)1.3750"
Thread Size (mm)34.93mm
Cutter Diameter (Inch)25/32"
Cutter Diameter (Decimal Inch)0.7835"
Cutter Diameter (mm)18.92mm
Pitch (Inch)15/64"
Pitch (Decimal Inch)0.2400"
Pitch (mm)6.00mm
Shank Diameter (Inch)25/32"
Shank Diameter (Decimal Inch)0.7874"
Shank Diameter (mm)20.00mm
Length of Cut (Inch)1-1/2"
Length of Cut (Decimal Inch)1.5000"
Length of Cut (mm)38.10mm
Number of Flutes5
Thread TypeInternal/External
Finish/CoatingTiAIN
MaterialCarbide
Through Coolant (yes/no)Yes
