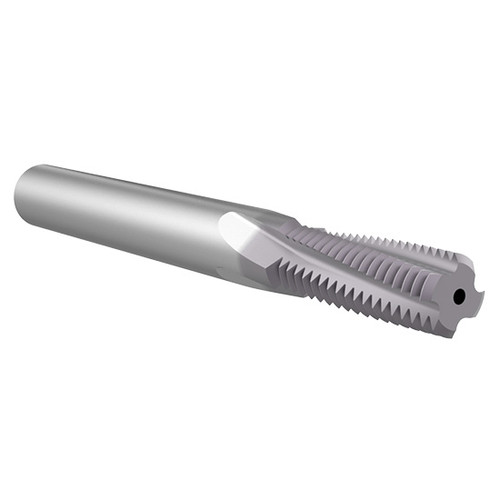

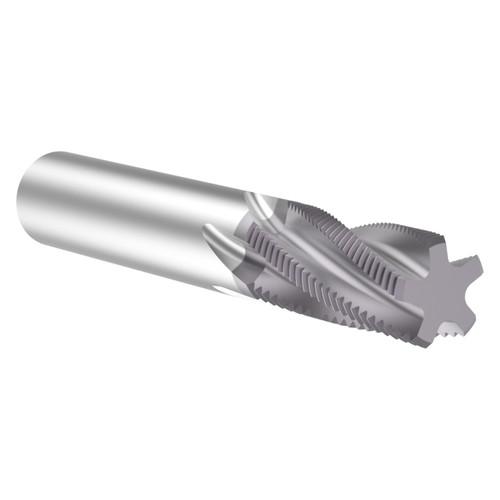

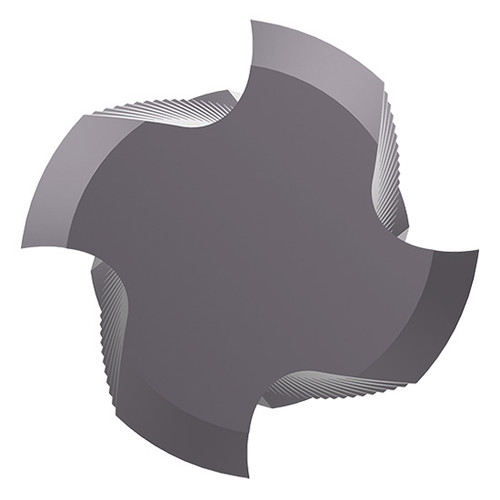

The threadmill range is manufactured from solid carbide with ground helical flutes and a TiAlN coating as standard. These products have been designed for the low volume/low cost production environment, providing excellent performance at a competitive price.
Features:
- Full product offering of UN,NPT,NPTF, and METRIC tools
- TiAlN coated for increased tool life over uncoated tools
- Extensive range of thread forms
- Coolant through
- Thread Form : ISO
Product Specifications
| #MFG | TM20150 |
| Thread Size (mm) | M20 |
| Cutter Diameter (Inch) | 5/8" |
| Cutter Diameter (Decimal Inch) | 0.6200" |
| Cutter Diameter (mm) | 1.50mm |
| Pitch (Inch) | 1/16" |
| Pitch (Decimal Inch) | 0.0600" |
| Pitch (mm) | 1.50mm |
| Shank Diameter (Inch) | 5/8" |
| Shank Diameter (Decimal Inch) | 0.6250" |
| Shank Diameter (mm) | 15.88mm |
| Length of Cut (Inch) | 1-27/64" |
| Length of Cut (Decimal Inch) | 1.4180" |
| Length of Cut (mm) | 36.02mm |
| Number of Flutes | 5 |
| Thread Type | Internal/External |
| Finish/Coating | TiAlN |
| Material | Carbide |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Thread Size (mm):
M20
Thread Type:
Internal/External
Pitch (Inch):
1/16"
Pitch (Decimal Inch):
0.0600"
Pitch (mm):
1.50mm
Cutter Diameter (Inch):
5/8"
Cutter Diameter (Decimal Inch):
0.6200"
Cutter Diameter (mm):
1.50mm
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Number of Flutes:
5
Length of Cut (Inch):
1-27/64"
Length of Cut (Decimal Inch):
1.4180"
Length of Cut (mm):
36.02mm
Finish/Coating:
TiAlN
Material:
Carbide
