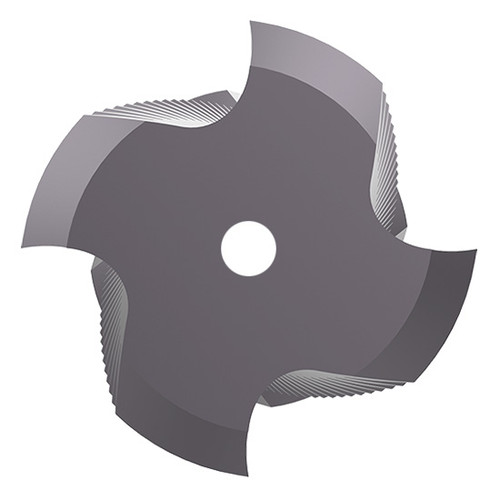

The threadmill range is manufactured from solid carbide with ground helical flutes and a TiAlN coating as standard. These products have been designed for the low volume/low cost production environment, providing excellent performance at a competitive price.
Features:
- Full product offering of UN,NPT,NPTF, and METRIC tools
- TiAlN coated for increased tool life over uncoated tools
- Extensive range of thread forms
- Coolant through
- Thread Per Inch : 20
- Thread Form : UN
Product Specifications
| #MFG | TM25020CHM |
| Thread Size (Inch) | 1/4" |
| Thread Size (Decimal Inch) | 0.2500" |
| Thread Size (mm) | 6.35mm |
| Cutter Diameter (Inch) | 3/16" |
| Cutter Diameter (Decimal Inch) | 0.1870" |
| Cutter Diameter (mm) | 4.57mm |
| Pitch (Inch) | 25/32" |
| Pitch (Decimal Inch) | 0.7900" |
| Pitch (mm) | 20.00mm |
| Shank Diameter (Inch) | 15/64" |
| Shank Diameter (Decimal Inch) | 0.2362" |
| Shank Diameter (mm) | 6.00mm |
| Length of Cut (Inch) | 1/2" |
| Length of Cut (Decimal Inch) | 0.5000" |
| Length of Cut (mm) | 12.70mm |
| Number of Flutes | 3 |
| Thread Type | Internal/External |
| Finish/Coating | TiAIN |
| Material | Carbide |
| Through Coolant (yes/no) | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
