Features:
- Thread Per Inch :9
Product Specifications

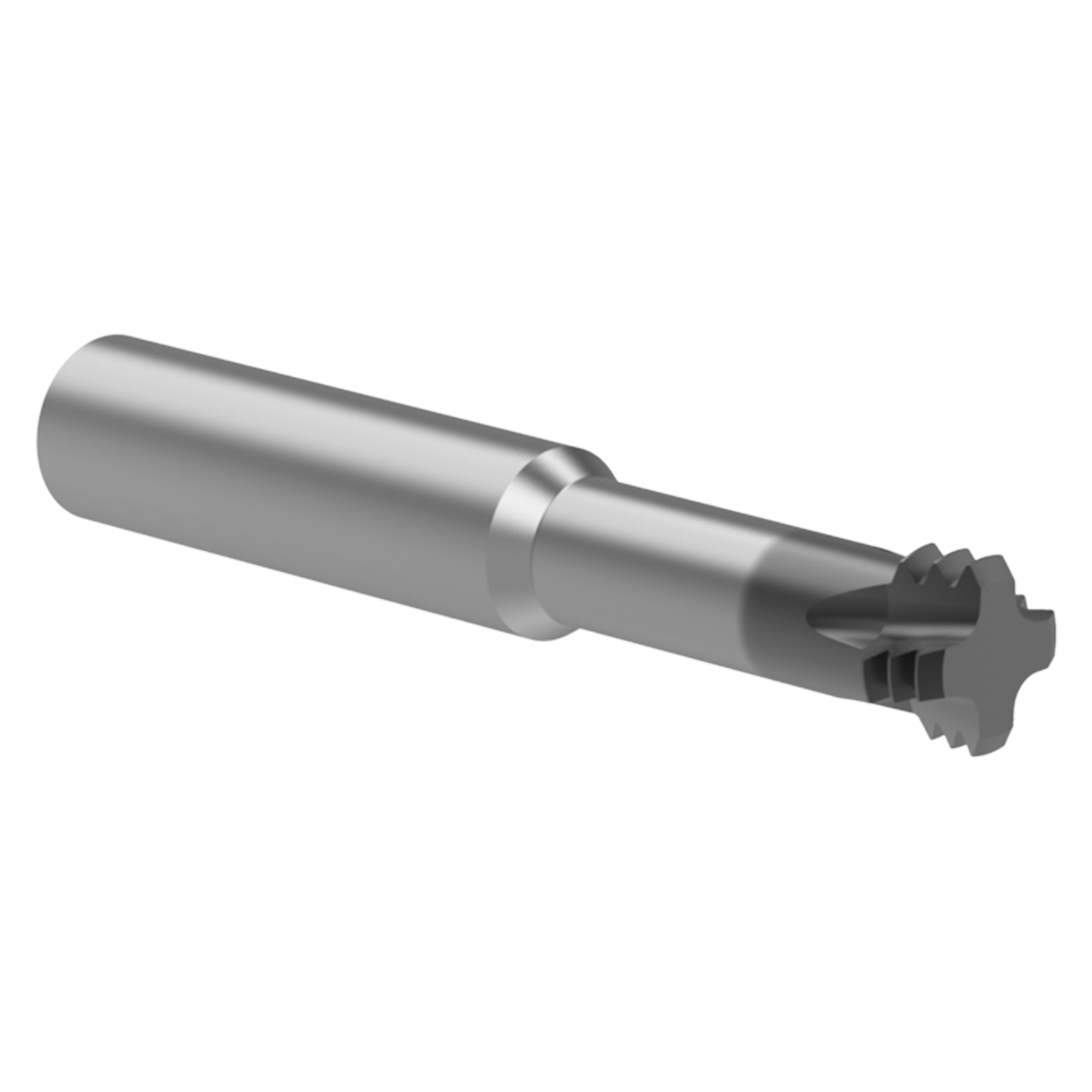

| # MFG | TM87509-3T2X |
| Cutter Diameter (Inch) | 0.62" |
| Length of Cut (Inch) | 1.75" |
| Overall Length (Inch) | 4" |
| Shank Diameter (Inch) | 0.625" |
| Minimum Thread Size | 7/8" |
| Number of Flutes | 4 |
| Pitch | 9 |
| Cutting Direction | Left Hand (M04) |
| Depth to Diameter | 2X |
| Shank Type | Cylindrical |
| Thread Standard | UN |
| Coolant Through | No |
| Coating | AM210 |
| Material | Carbide |
| Flute Type | Helical |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Cutter Diameter (Decimal Inch):
0.6200"
Shank Diameter (Decimal Inch):
0.6250"
Through Coolant:
No
Length of Cut (Decimal Inch):
1.7500"
Overall Length (Decimal Inch):
4.0000"
Finish/Coating:
AM210
Cutting Direction:
Left Hand (M04)
Flute Type:
Helical
Material:
Carbide
Number of Flutes:
4
Minimum Thread Size (Inch):
7/8"
Shank Type:
Cylindrical
Thread Standard:
UN
