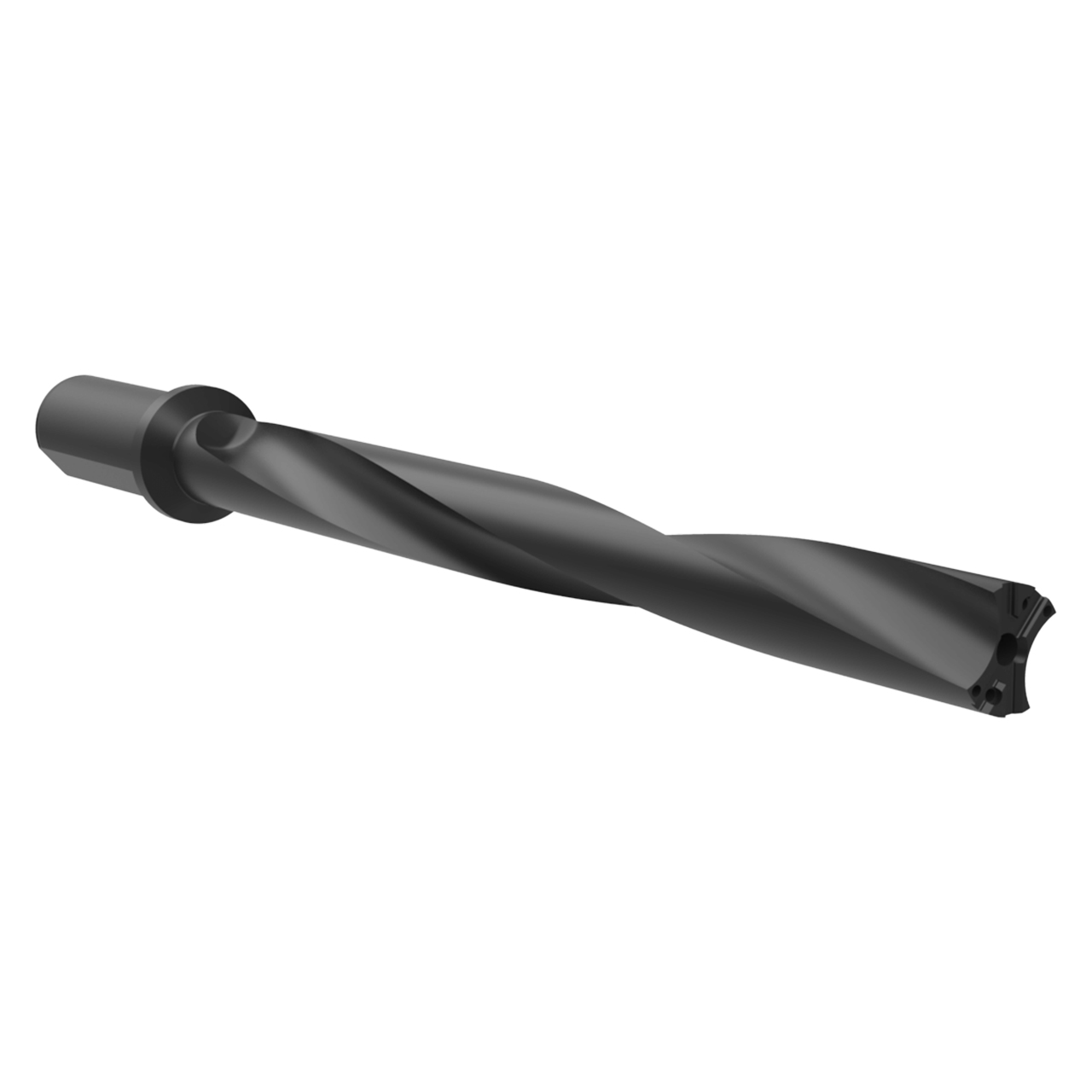

Allied Machine and Engineering W4410H-150F | 2.008" Diameter x 1.500" Shank x 20-1/8" Drill Depth 44 Series Flanged Indexable Drill Body

$1,153.00 $985.82
(You save $167.18)
interval quantity:
1
SKU:
23030589
UPC:
Weight:
9.34 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Allied's APX drilling system is a modular tool designed for depths beyond the range of a traditional IC drill. The tool uses a fixed series body, with various heads that determine the cutting diameter.

Features:

  • Allows for higher Spindle speeds and takes advantage of the power curve on modern CNC machines for maximum penetration rates on deep holes
  • A unique "X" locator on the Head to body connection allows for simple assembly and superior strength

Product Specifications
# MFGW4410H-150F
Assembled Overall Length (Inch)25-9/32"
Assembled Reference Length (Inch)22-19/32"
Drill Depth (Inch)20-1/8"
Maximum Diameter (Inch)2.0075"
Minimum Diameter (mm)44.00mm
Shank Diameter (Inch)1-1/2"
Shank Length (Inch)2-11/16"
Series44
Shank TypeFlanged
Length Type10xØ
Coolant Inlet Style RearThrough the Shank
Flute TypeHelical
